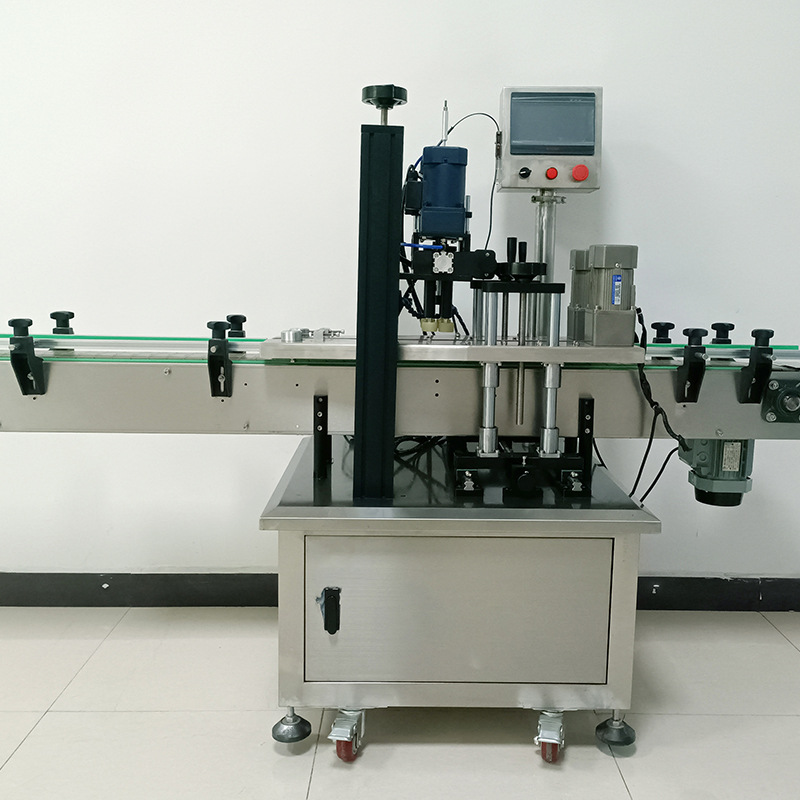

Automatic 4 wheel screw capping machine with cap elevator feeder

Applicable Bottles:

Round bottles, square bottles and flat bottles

Applicable Caps: Screw Caps

Parameters

Capping Head	:	4 wheels
Production Capacity	:	30-40BPM depending on bottle sizes and shapes
Bottle Height	:	Up to 460MM
Cap Diameter	:	Up to 70MM
Voltage/Power	:	220VAC 50/60Hz 450W
Driven way	:	Motor with 4 wheels
Interface	:	DALTA Touch Screen
Spare Parts	:	Capping Wheels



Introduction

The main structure is made of durable 304 stainless steel. The machine is control by touch screen, parameter can be set on touch screen very easily. It is very flexible for different sizes of round bottles, square bottles and flat bottles by adjustment. Capping time can be set to fit different caps and different levels of tightness. It is very easy for exist line upgrade.



Features

1. Controlled by  touch screen.
2. Adjustable for different sizes and shapes of caps and bottles
3. Bottle Clamp belt bottle in system is optional for upgrade capping speed, up to 40BPM
4. Integrated digital control with Schneider PLC and high tech touch screen controls for easy operation.
