Pharmaceutical Labeling Machine Video
Automatic Syringe Label Machine Tech. Parameters
| Voltage | AC220V 50/60HZ single-phase (according to user) |
| Power | 3500W |
| Speed | 160～200 Syringes/min(depending on the size of Needle Tubes, label length) |
| Accuracy | ±1.0mm |
| Weight | 400KG |
| Package Size | 1500*1400*1800mm |

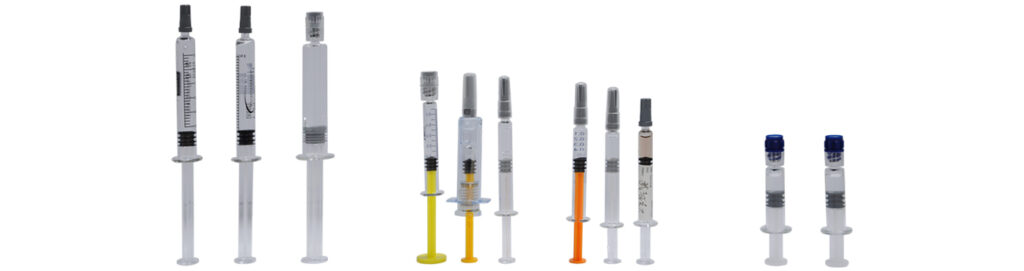

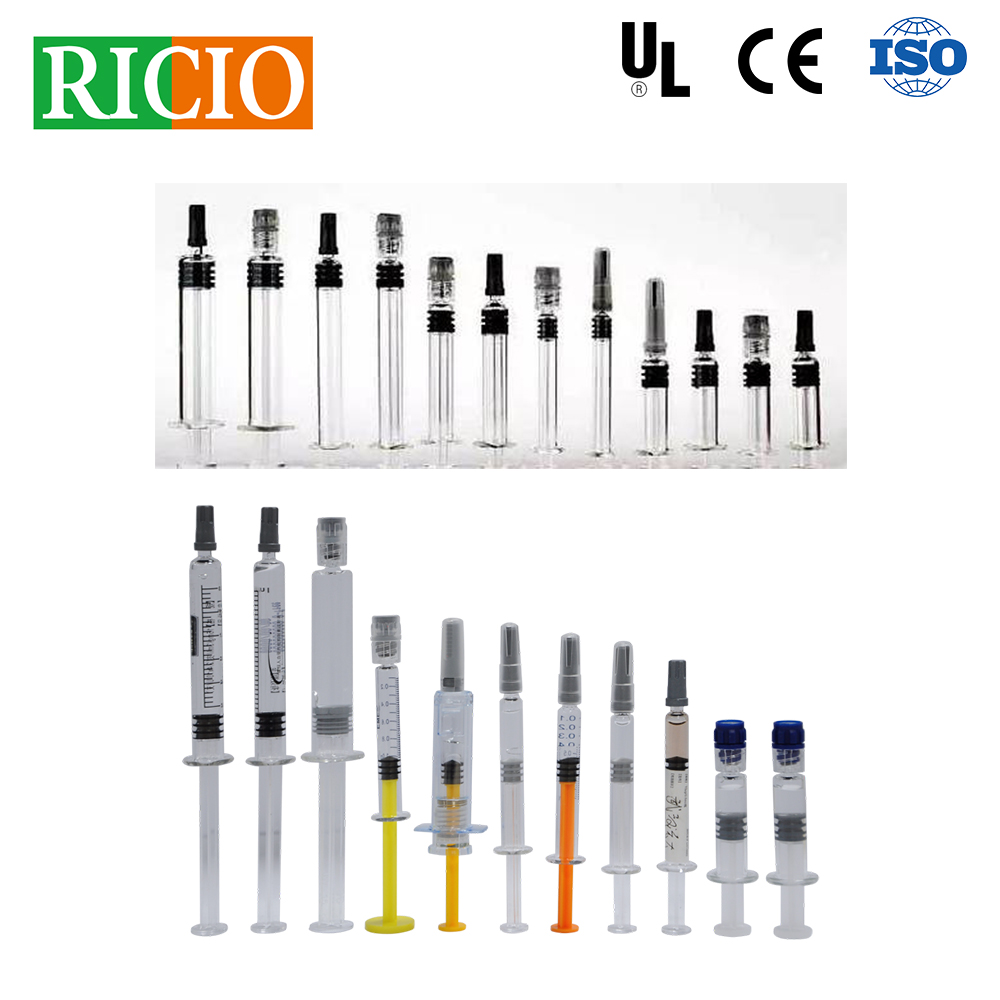

| Total length of needle tube | ≤ 90mm |
| Outer diameter of Needle Tubes | Ф 8-20mm |
| Labeling position requires the highest distance from needle tube ear | 10mm |
| Label length | 20-60mm |
| Labeling height | ≤ 80mm |
| Maximum outer diameter of label roll | Ф 300mm |
| Label roll core inner diameter | Ф76mm |
| Single label spacing | ≥3mm |
| Label thickness | ≥8um and a certain degree of tensile strength |
| thickness of the base paper | ≥5um and a certain degree of tensile strength |
| Label Roll Inner | Φ76mm |
| Label Roll Outer | Φ300(max) |
Automatic Syringe Label Machine Advantages

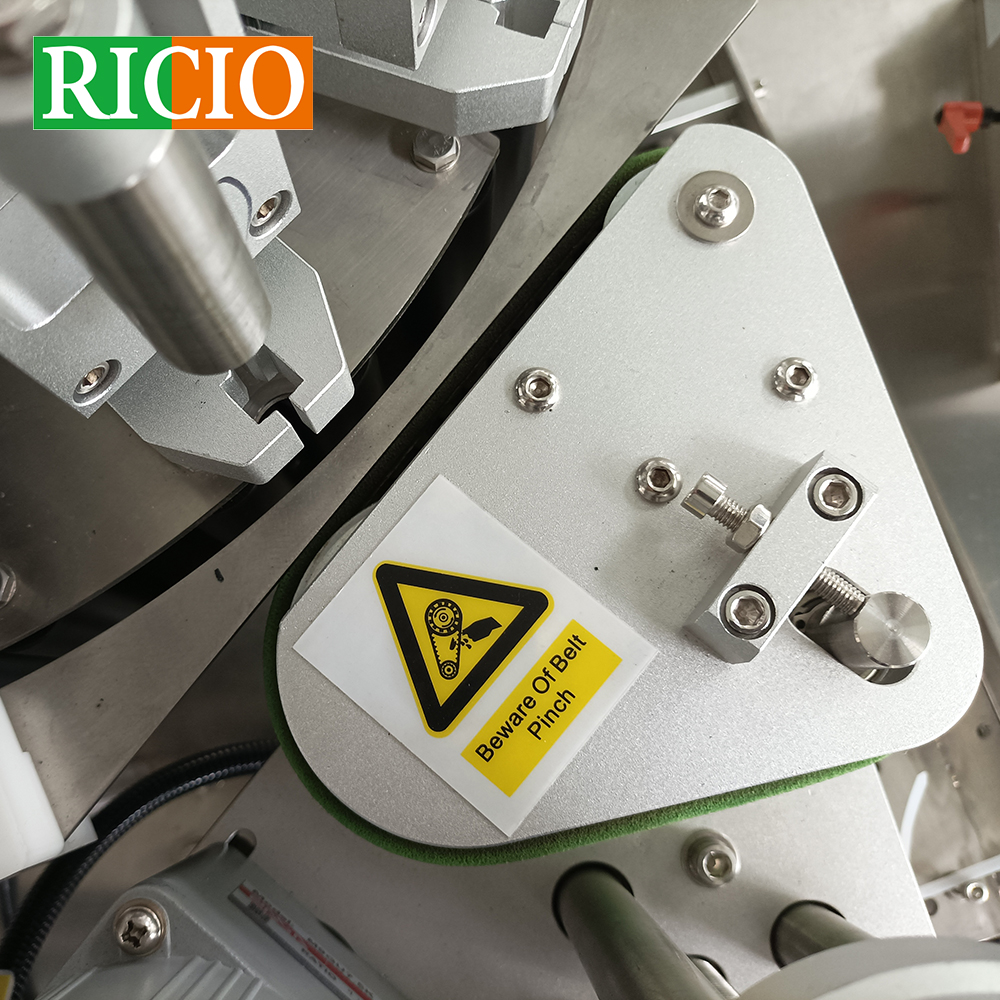

- High labeling accuracy, servo motor driven label sending, accurate label sending; The design of the deviation correction mechanism for the label belt to ensure that there is no left-right deviation in the process of label traction; The eccentric wheel technology is applied to the traction mechanism. The traction label does not slip, ensuring accurate marking;

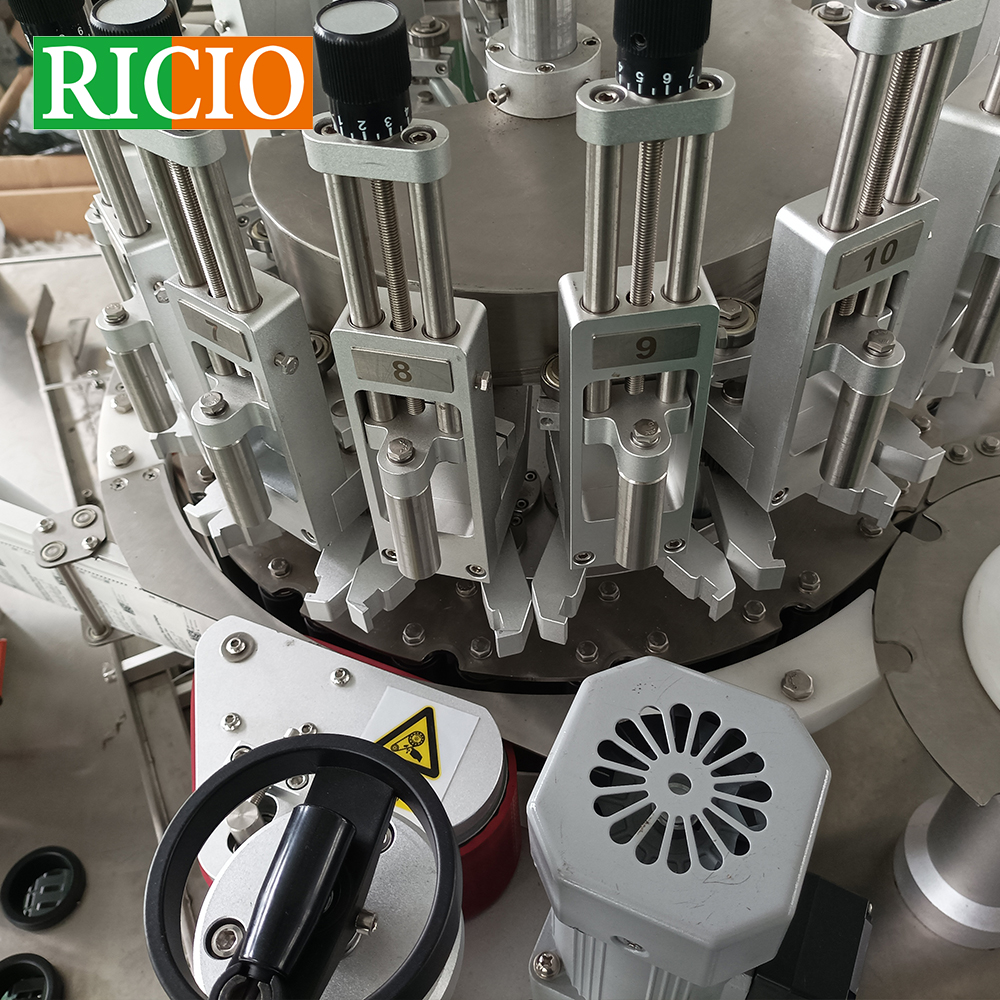

- It is firm and durable. It adopts a three-bar adjustment mechanism to make full use of the stability of the triangle. The whole machine is firm and durable;
- Universal casters are installed on the equipment base, which is easy to move; The position display is installed on the adjustment parts, which can be adjusted in one step when replacing the product;
- High stability, advanced electric control system composed of Siemens PLC, Siemens touch screen and servo motor, supporting equipment 7 × 24-hour operation;
- Flexible application, single machine production or assembly line production, simple production site layout;
- Intelligent control, automatic photoelectric tracking, with no labeling, no labeling automatic correction and label automatic detection functions to prevent missing labeling and label waste;
- Touch screen operation interface, full Chinese/English annotation and perfect fault prompt function, simple and fast adjustment of various parameters and convenient operation;
- Powerful function, with production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient production management;
Needle Tubing Self-Adhesive Labeling Machine Optional configuration function
Hot code printing / ink-jetting function;
Automatic feeding function, the storage capacity is large, the hoist feeds the material to the centrifugal disc, and the slide is used for unloading (considering the product);
Automatic material collecting function (considering the product);
multiple labeling device;
Other functions (customized according to customer requirements)
