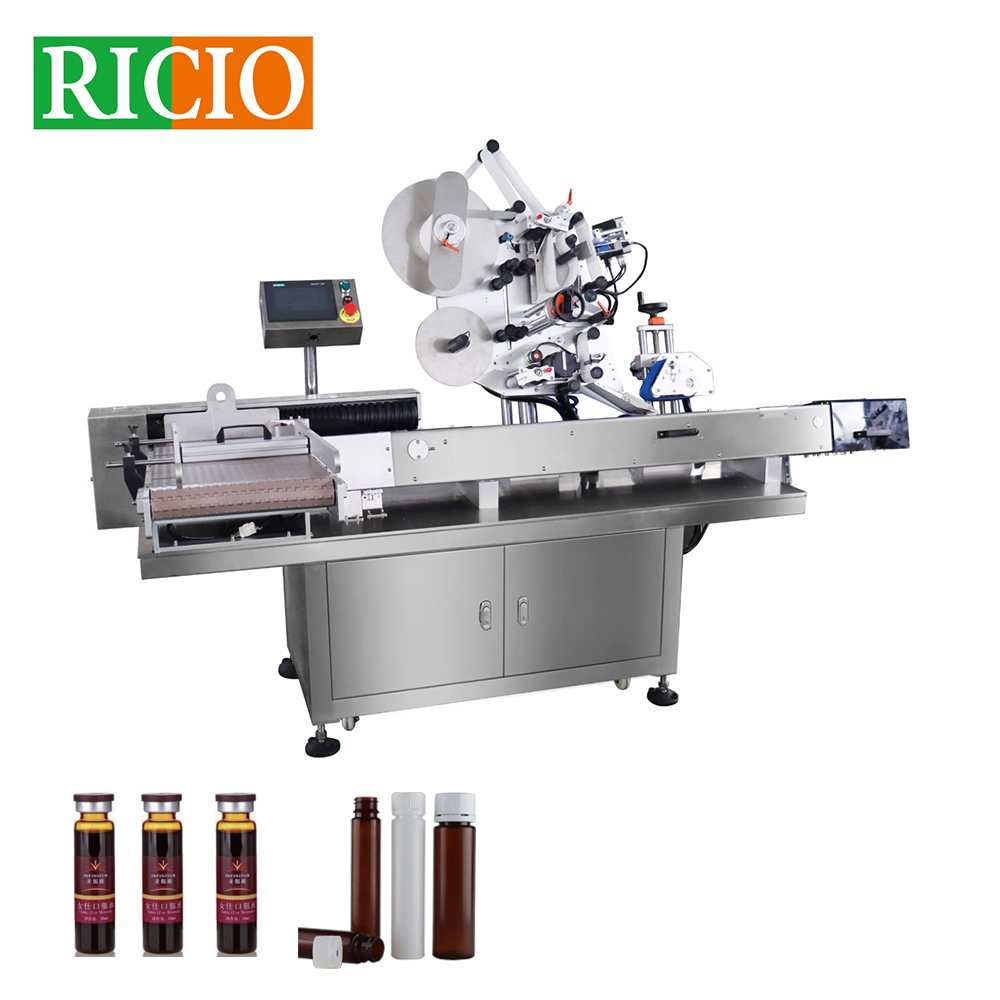

High Speed Label Applicator VIDEO

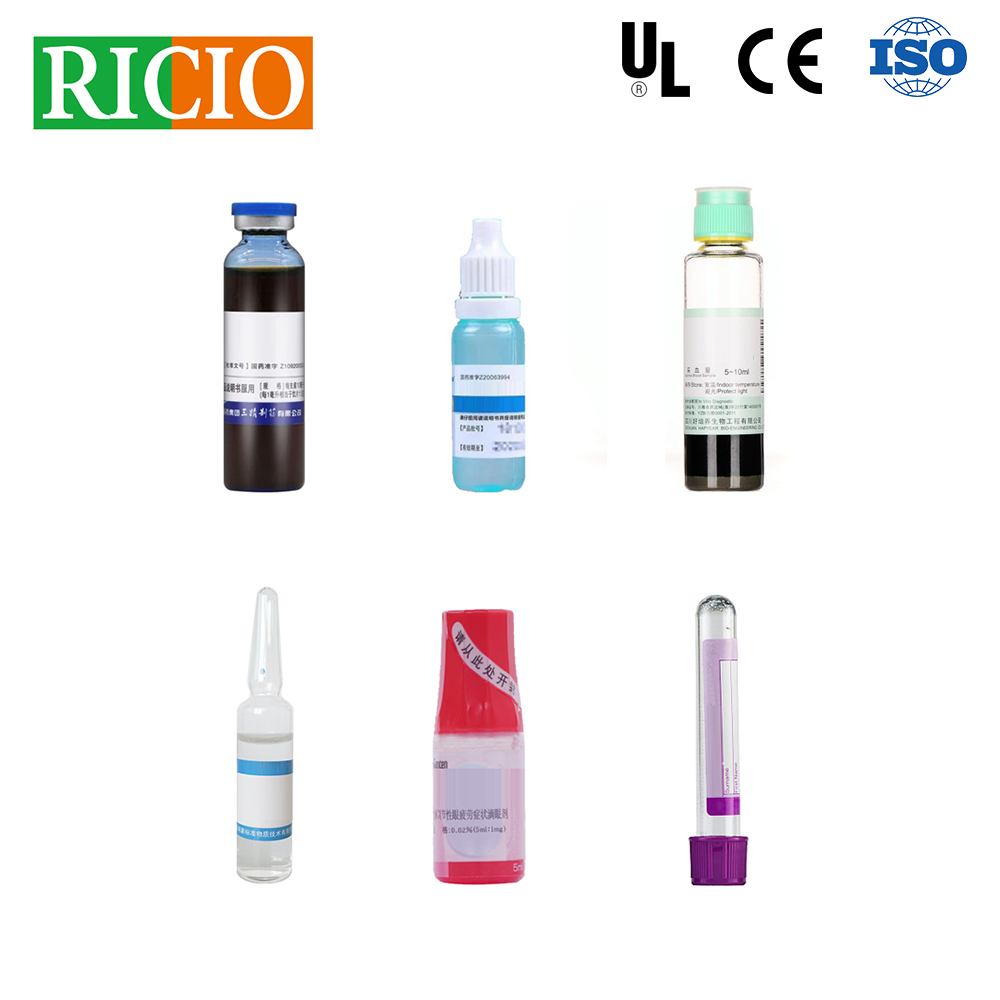

High Speed Bottle Labeling Machine Work Principle
Different spec. of round bottles from the conversion mechanism into the labeling machine conveyor belt, driven by the conveyor belt bottles into the labeling area, by the sight of the electric eye to detect the bottle, the photoelectric signal will be transmitted to the PLC, processed by the PLC will be the output signal transmitted to the servo motor, the servo motor out of the labeling through the rolling mechanism will be affixed to the label on the bottle, labeling of bottles by the labeling machine conveyor belt to enter the next process or containers.

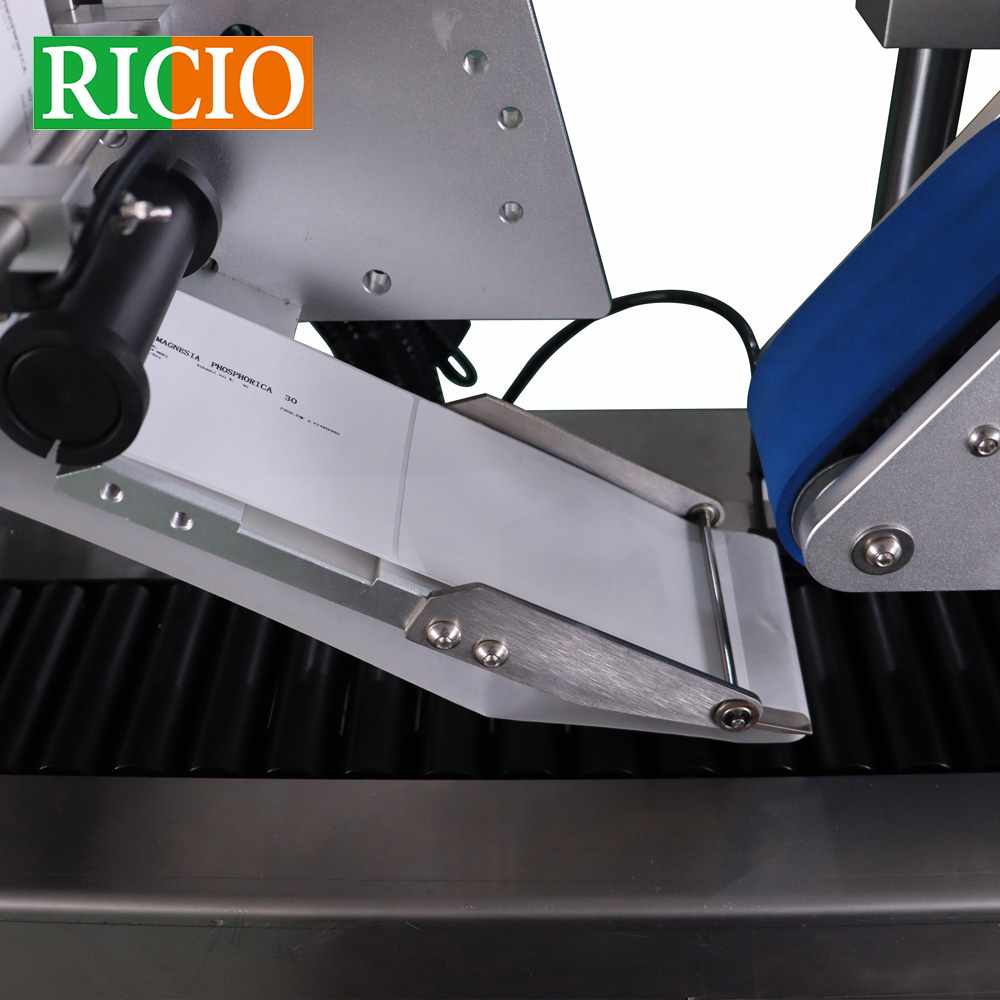

Industrial Labeling High Speed Machine Tech. Parameters
| Voltage | AC220V 50/60HZ |
| Power | 980W |
| Capacity | 200~600b/m（Adjustable speed, depending on object size and label length） |
| Accuracy | ±1mm（depends on object&label sizes and labeling pattern） |
| Bottle Diameter | 10~24mm |
| Bottle Height | L≤110mm（Can be customized） |
| Label Size | H10mm~80mm L15~80mm（Can be customized） |
| Size of Paper Roll | Inner diameter of label roll:Ф76mm；outer diameter of label roll:Ф300mm |
| Weight | 200kg |
| Dimension | 2600*1400*1700mm |
| Conveyor Width | Can be customized according to the diameter of the sample bottle |

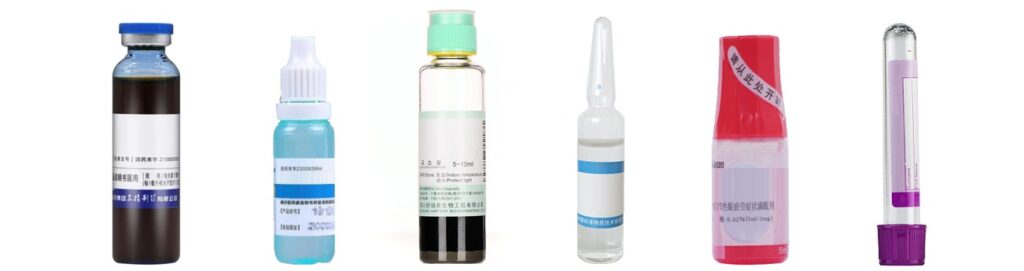

High Speed Labeling Machine Design
1.Super wear-resistant labeling roll-on mechanism, made of special Teflon material, durable and non-abrasive.
2.Precise differential speed bottle dispensing mechanism, bottle dispensing accuracy as high as ±5mm, replacing bottles of different specifications without the need to replace parts, cost savings, easy to adjust, better than other brands.
3.Stable and durable machine base and various parts, are adopted standardized modular design with complete interchangeability, 24-hour operation, to ensure safety and stability.
4.The chassis is made of stainless steel SUS304 and T6 aluminum alloy, which never rusts and conforms to GMP standard.
-Printing head adopts solenoid valve to control the cylinder for reciprocating motion, compared with the crank linkage movement, the reaction speed and printing speed are greatly improved.
-Printing date, production lot number and expiration date can be completed at the same time, and the printing direction can be adjusted according to the user’s needs. Clear handwriting, hygienic and clean.

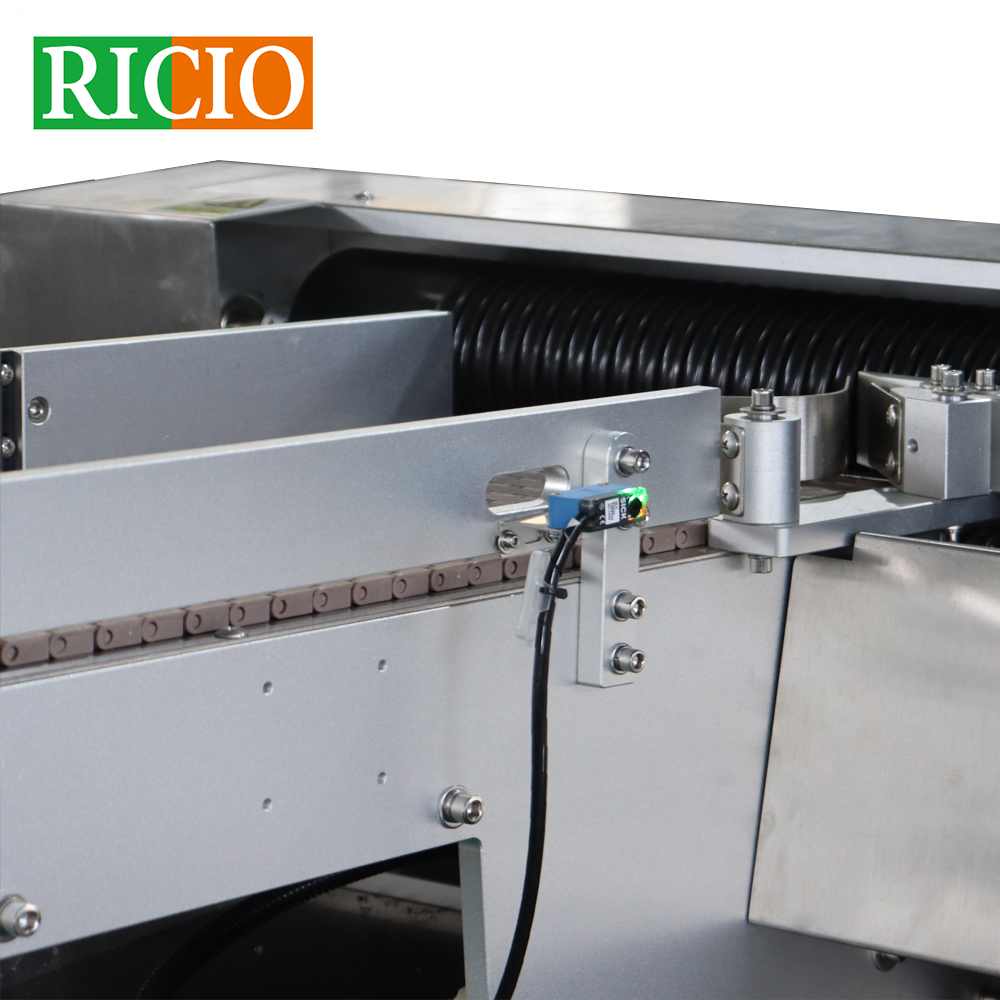

High Speed Ampoule Labelling Machine Motor System
The motor adopts Japan OMRON servo labeling system, OMRON PLC and function module, OMRON servo main motor out of the label, OMRON frequency conversion regulation: stability and synchronization is very high, the fastest response speed up to 1200 times per minute, and torque is strong, and never out of step.

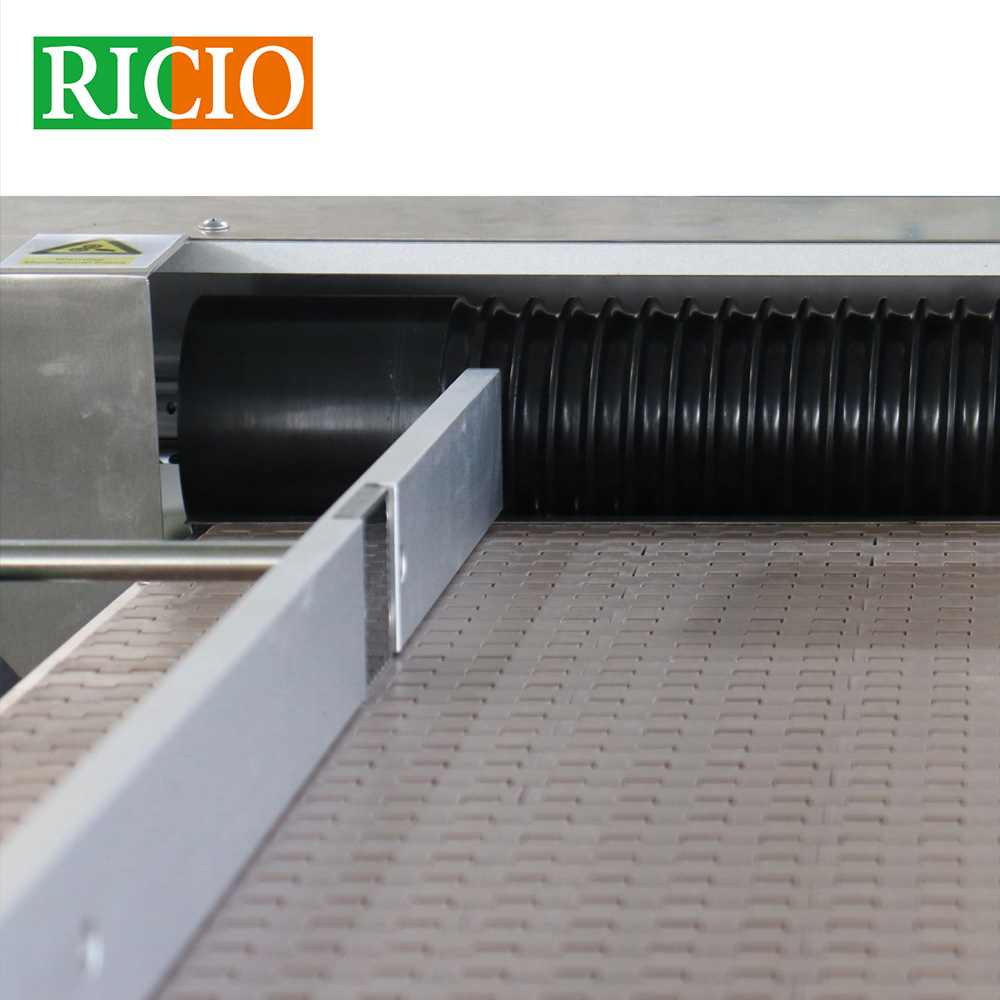

High Speed Linear Sticker Labeling Machine Japanese OMRON Computer Control System
The real FUZZY (intelligent) free of setting, free of adjustment, as long as the power on, the system has completed all the labeling calculations and preparations, press the start button can be labeled with the perfect product.

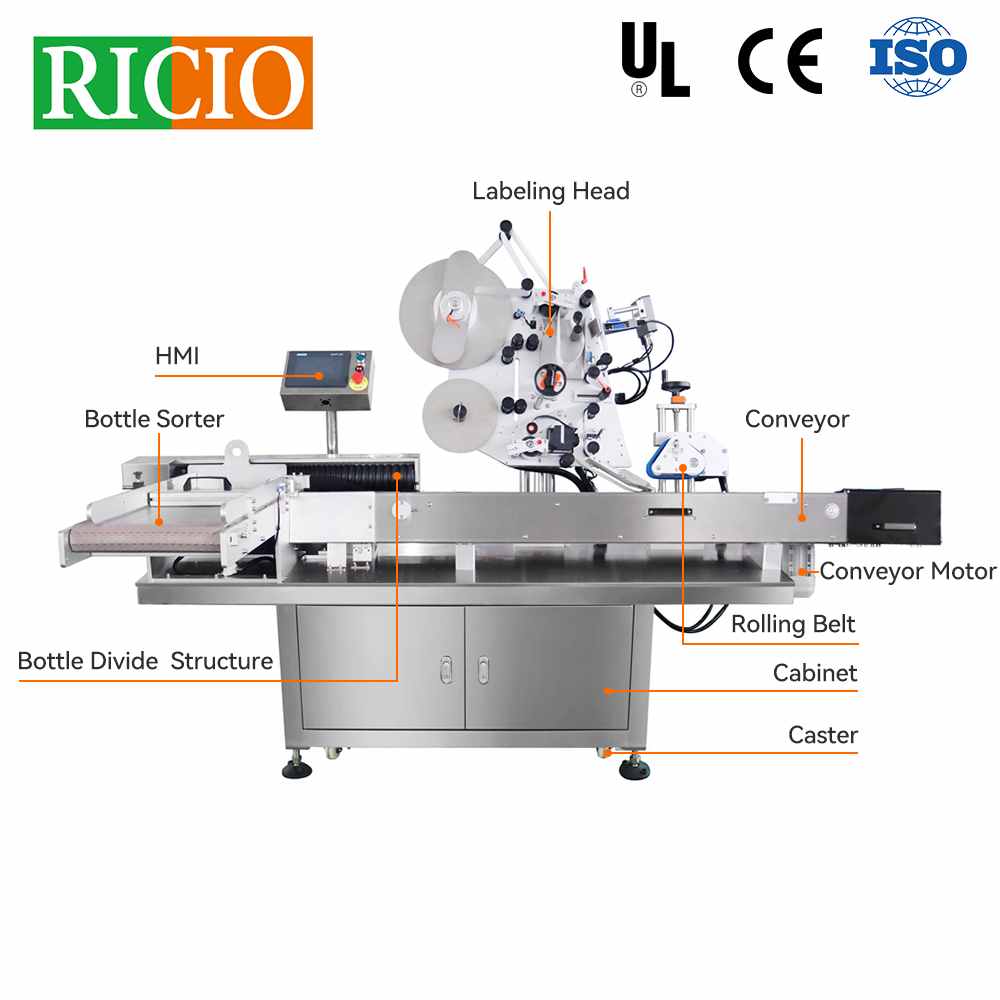

Horizontal Sticker Labeling Machine Config. List
| Parts Name | Qty | Brand | Origin |
| Touch screen | 1 | DELTA | Joint-venture |
| Labeling motor | 1 | RNTEC | Joint-venture |
| Labeling motor driver | 1 | RNTEC | Joint-venture |
| Conveyor motor | 1 | TQG | China |
| Conveyor motor gear box | 1 | TQG | China |
| Paper receiving motor | 1 | JSCC | China |
| Paper receiving motor gear box | 1 | ||
| Attached wheel motor | 1 | ||
| Attached wheel motor gear box | 1 | ||
| Separation motor | 1 | ||
| Separation motor gear box | 1 | ||
| Frequency converted | 1 | OMRON | Japan |
| Labeling electronic eye | 1 | KEYENCE | Japan |
| Label detection electronic eye | 1 | KEYENCE | Japan |
| Paper receiving proximity switch | 1 | OMRON | Japan |
| （PLC） | 1 | OMRON | Japan |
| Electro-magnetic relay | 1 | OMRON | Japan |
| Solenoid valve | 1 | OMRON | Japan |
| Temp. controller | 1 | OMRON | Japan |
| Proximity switch | 1 | OMRON | Japan |
| Coding printer | 1 | pneumatic | China |
| Cylinder | 1 | SMC | Japan |
| Solenoid valve | 1 | MAC |
Ampoule Labeling Machine Control Pattern
A. The use of imported touch screen human-machine interface, full Chinese display, as long as the display screen in accordance with the instructions for operation, without any experience, you can easily on-line, greatly reducing staff training time; through the human-machine interface can be arbitrarily set the production speed, can automatically adjust the production speed, can be matched with the speed of any production line for the most effective production operations.
B. If there are abnormal faults: such as labels run out, broken tape or leakage, counting set to reach, mechanical abnormalities, etc., will automatically shut down to send an alarm.
RT-380 High Speed Hot Stamping Printing Machine (supporting parts for horizontal labeling machine)
This equipment is assembled with precision parts, standardized production by strict quality control, so the quality is stable with complete interchangeability is now the best of all thermal printing equipment. Small size printing area, installation of single, easy maintenance, fast speed, clear printing, never fade suitable for installation in any packaging equipment for the implementation of the manufacturing date, expiration date, weight, batch number, price and other printing and labeling operations, applicable to a wide range of materials, such as paper, plastic, tin foil.
Printing three lines, each line up to 15 characters.
Adopt Japan Fuji temperature controller, safe operation voltage is 24V.
Printing, ribbon power cylinder is Japan SMC, stable operation, clear printing.
The conversion air valve is Japan SMC to ensure 350 bottles/minute printing.
RT-380 High Speed Hot Stamping Printing Machine Technical data
| Overall Dimension | 70*90*330 mm |
| Weight | 4 kg |
| Speed | 3-500 times per minute |
| Power supply | AC220V 50/60HZ & DC24V (according to user) |
| Electric heating power | 220W |
| Temp. control mode | PID constant temp. control |
| Drive | pneumatic drive, intermittent reciprocating |
| Air pressure | 5 kg/cm2 pressure air |
| Air consumption | 3 m3 per hour, 300 times per minute |
