| Product Paramenters | |
| Voltage Specifications | AC220V 50/60HZ (according to user) |
| Power Consumption | 1200W |
| Labeling Speed | 30～60 tubes/min(adjustable speed, according to the size of object and label length) |
| Percentage of labeling | ±1.0mm (according to products characteristics, hardness and roundness) |
| Air Pressure | 0.4～0.6Mpa |

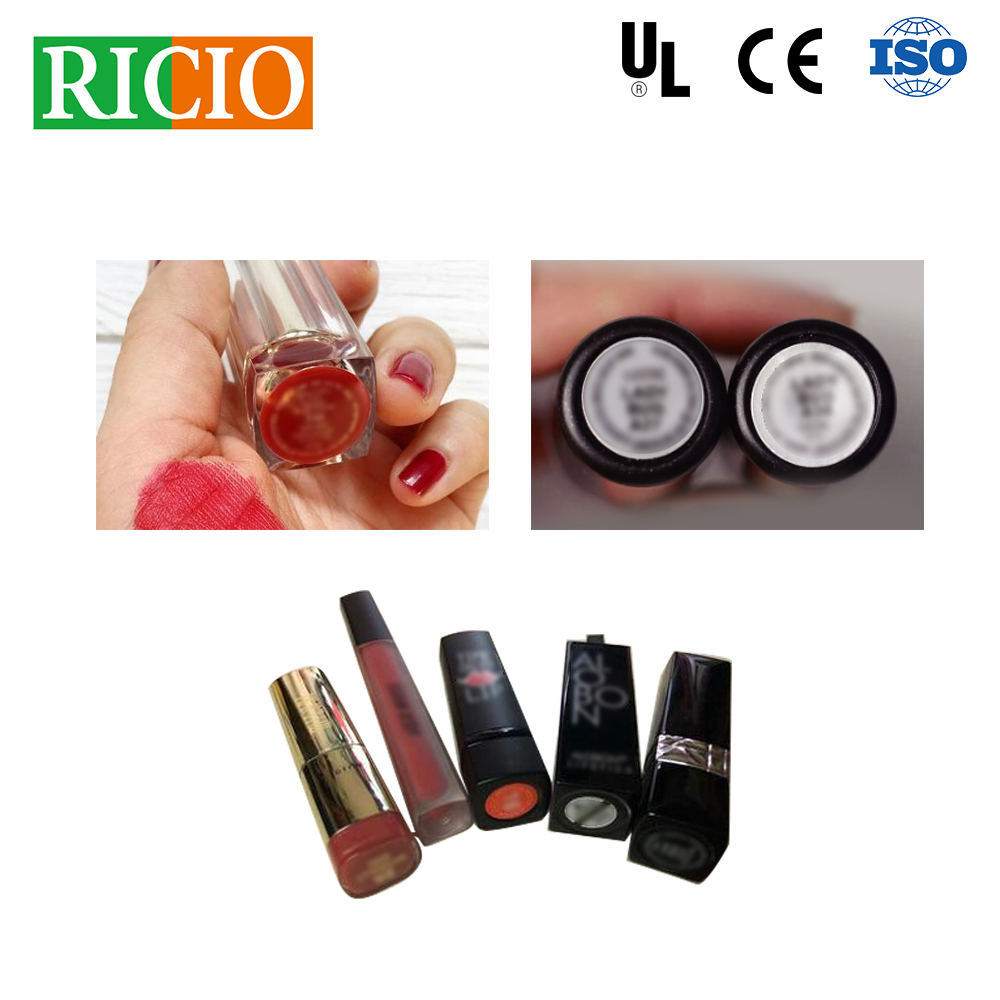

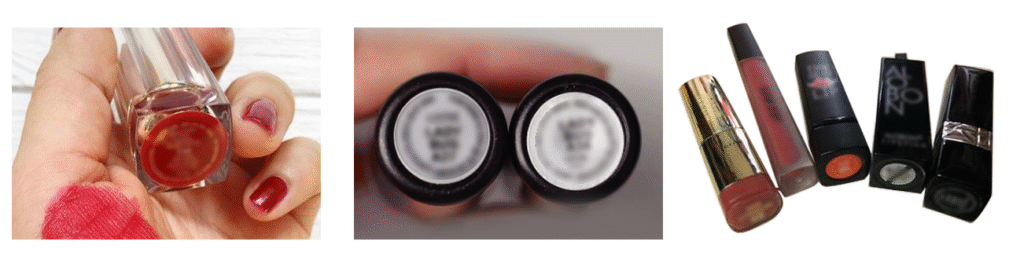

| Object Range | According to product spec. To make mold |
| Label Specifications | Φ6～25mm (can be customized if needed) |
| Inner Diameter of Paper Roll | |
| roll diameter inner | Φ76mm |
| roll diameter outer | Φ300 |
| Weight | 200KG |
| Package Size | 2000*1000*1500mm |
| The above tech. Parameters are based on the standard machine, we can offer customization service if needed. | |
Structure features:
- Fixed-point labeling standards are accurate, small error.
- Reduce bottle friction damage, to ensure the integrity of the appearance.

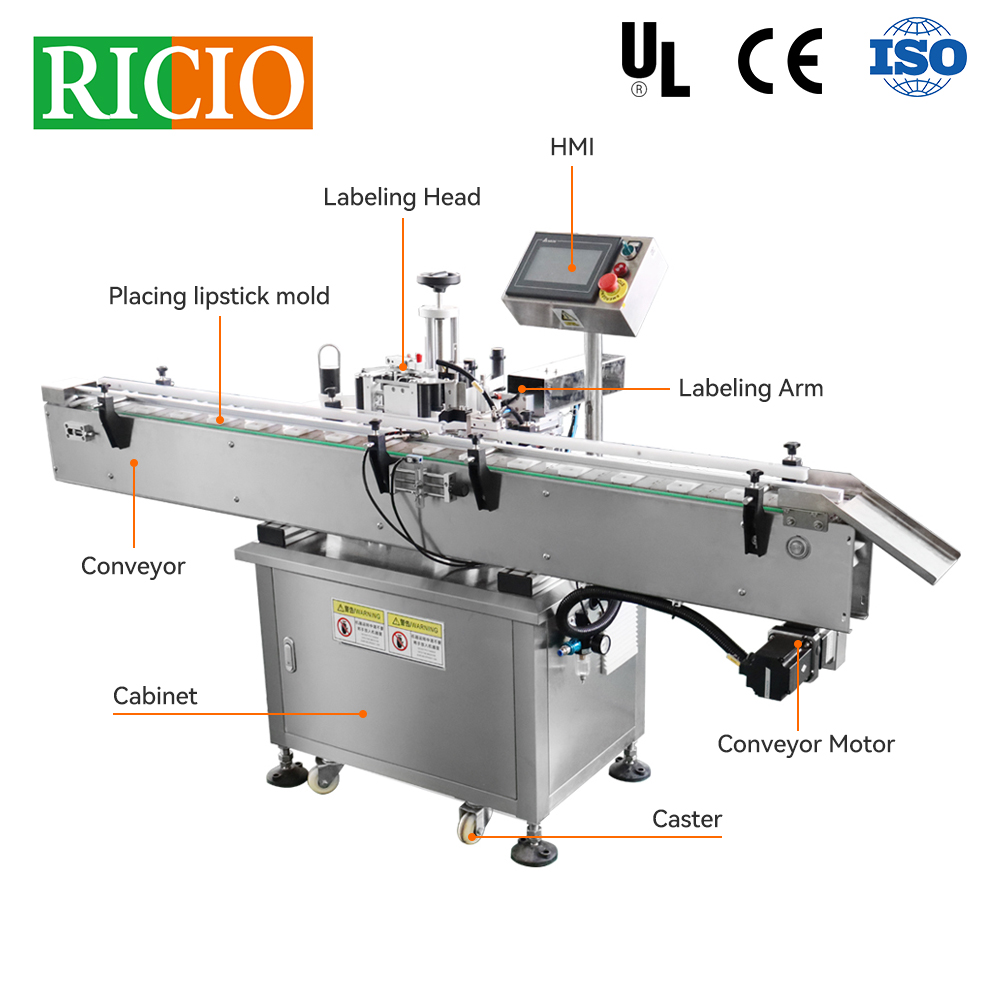

| Components List | ||||
| Parts Name | Qty | Unit | Brand | Origin |
| HIM | 1 | pcs | SIEMENS | Germany |
| PLC | 1 | pcs | SIEMENS | Germany |
| Labeling servo motor | 1 | pcs | OMRON | Japan |
| Solenoid valve | 2 | set | AirTAC | Taiwan |

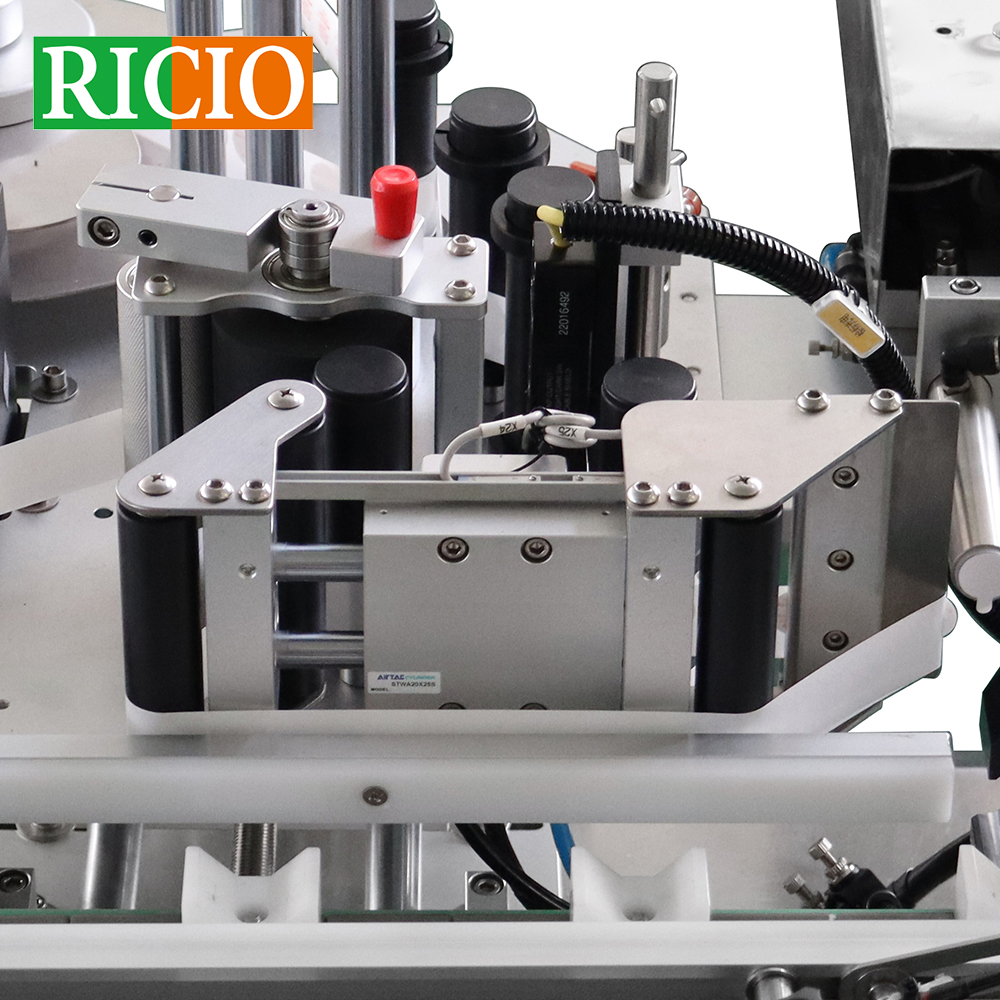

| Labeling cylinder | 1 | pcs | AirTAC | Taiwan |
| Conveyor motor | 1 | pcs | OMRON | Japan |
| Conveyor motor frequency converter | 1 | pcs | OMRON | Japan |
| Low voltage appliance | 1 | set | SCHNEIDER | France |
| Label sensor | 1 | set | OMRON | Japan |
| Labeling sensor | 1 | set | OMRON | Japan |
| Synchronous toothed belt | 1 | set | BANDO | Japan |
| Pneumatic components | 1 | set | AirTAC | Japan |
| Conveyor | 1 | set | LL | China |
| Machine stand | 1 | set | SUS304 | China |
| System integration | 1 | set | RICIO | China |
Work flow:

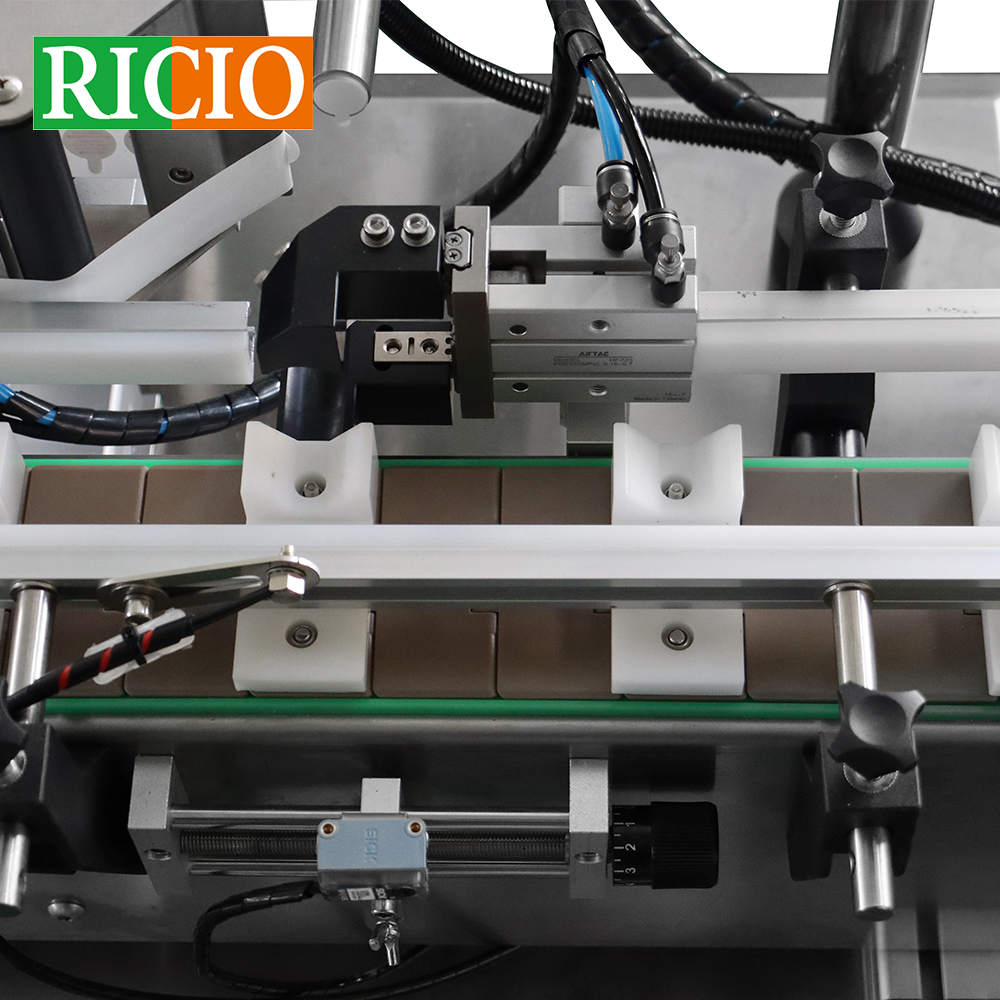

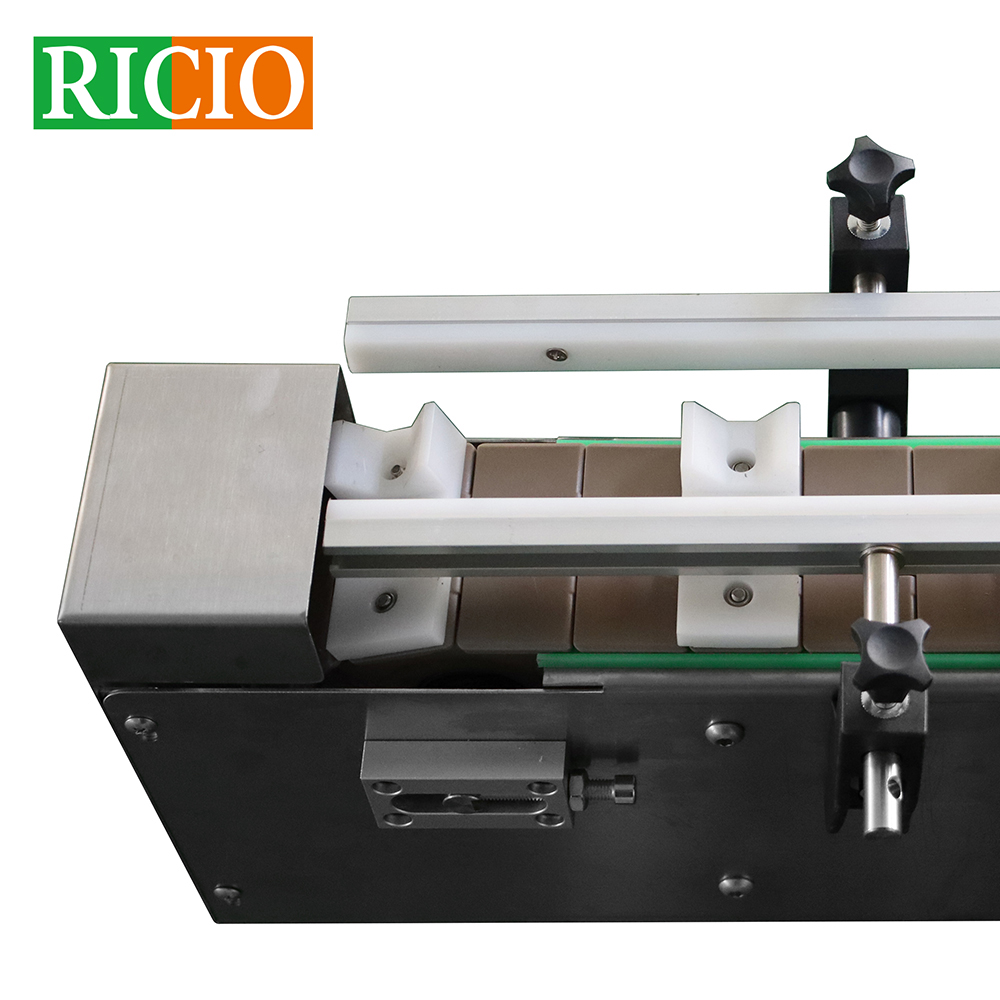

- Place the product in the special mold, conveyor driven product movement.
- Arrive at the designated workstation, photoelectric detection of the product. Labeling machine out of the label.
- Labeling end, push the labeling mechanism to withdraw, the product falls into the mold, conveyor movement, take away the product.
