Flat Bag Label Applicator Video

Pouch Label Applicator Performances

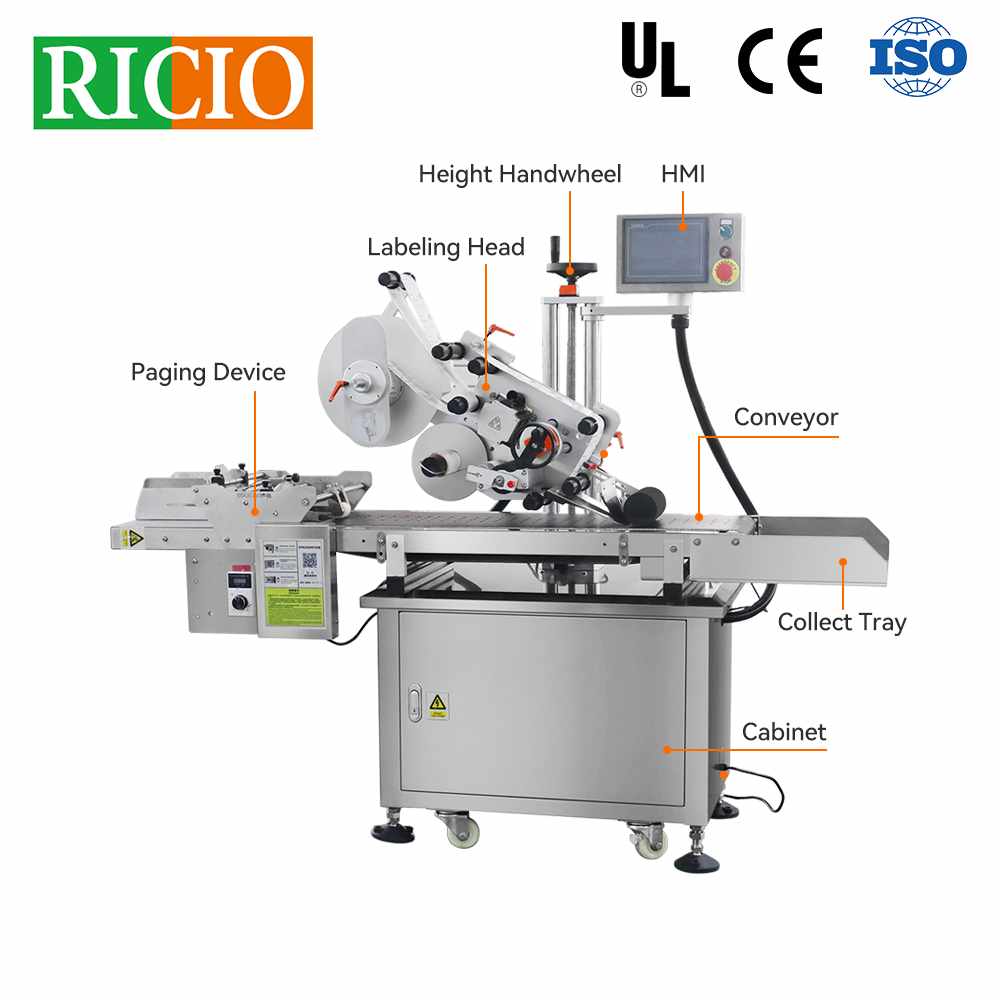

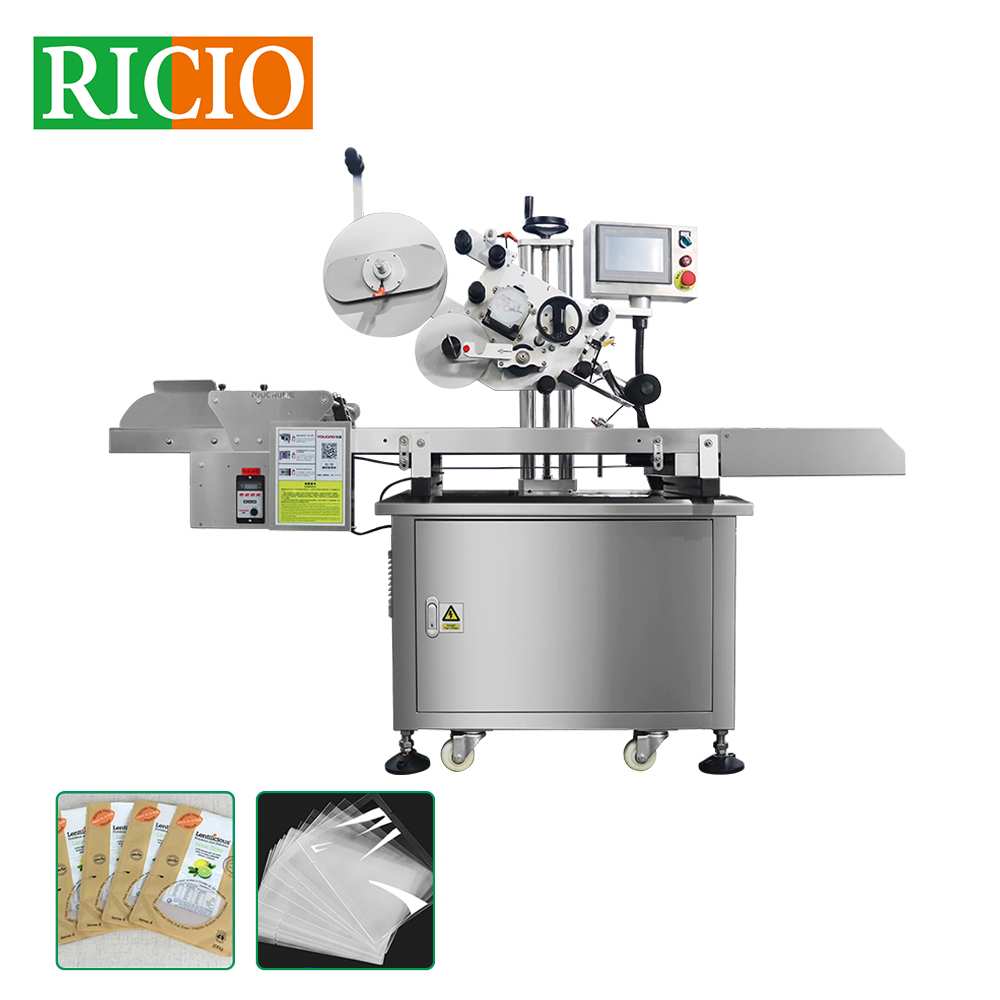

Automatic Paging Self-adhesive Labeling Machine can automatically affix the label to the designated position of the carton; at the same time to complete the printing of the batch number, date of production, production counting. In the absence of boxes, the control system to ensure that the label is not sent to effectively prevent the waste of labels, and according to the production characteristics of each factory labeling speed for stepless speed regulation, so as to ensure that the machine can be used individually or in line with other machines to use the labeling components to make the surface of the box is not too flat to get a satisfactory labeling effect. This type labeling machine can adapt to a variety of specifications, colors, materials of the carton plastic bags; the machine is widely used in medicine, food, light industry, beverages, daily chemicals and other industries.

Plastic Bag Labeling Machine Technical Parameters

Pouch Labeler Advantages/Features

1. Compact mechanical design with minimal space requirements, enabling easy equipment movement and installation on assembly lines; features a product-oriented gap elimination mechanism and label anti-skew mechanism, achieving labeling positioning accuracy of up to ±1mm;
2. Excellent labeling stability, ensuring smooth, wrinkle-free, and bubble-free labeling, suitable for most products with flat surfaces and large curved surfaces that require precise labeling;

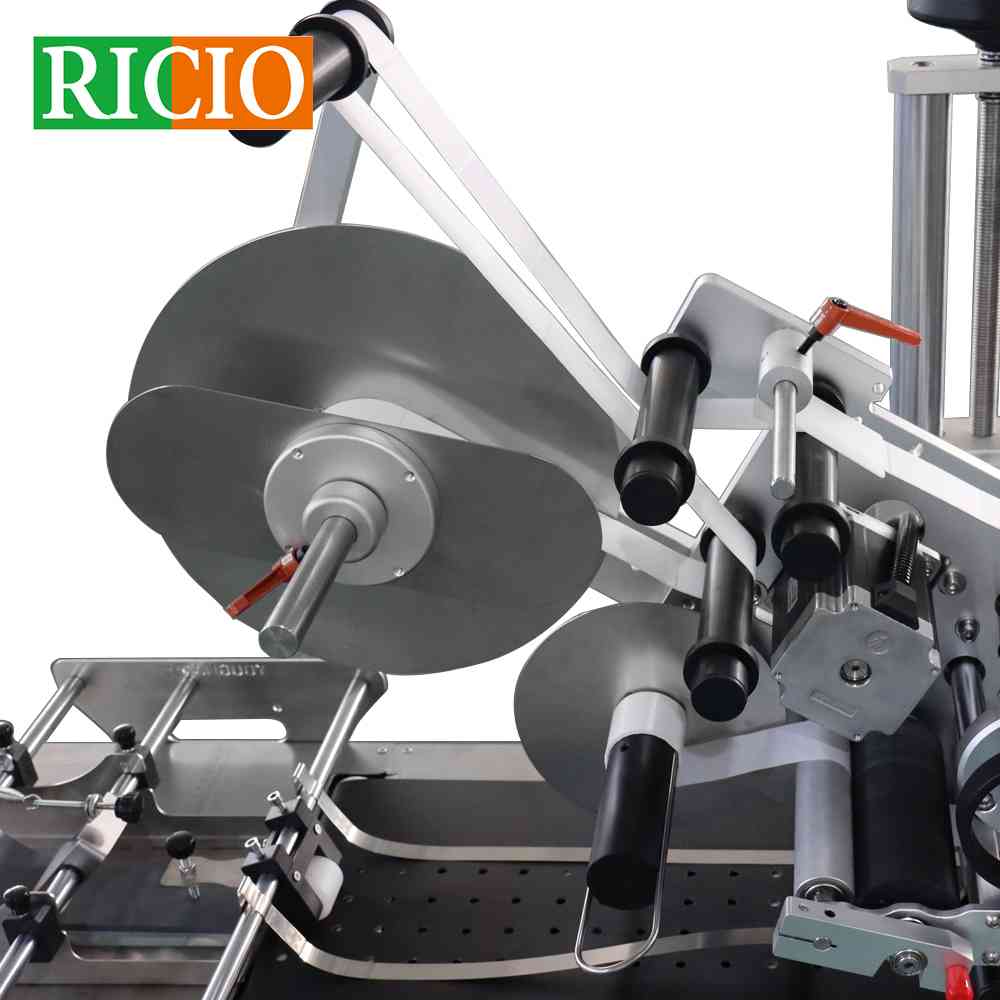

3. The structured combination of mechanical adjustment components and the ingenious design of label roll winding allow for convenient fine-tuning of labeling position (adjustments can be locked in place), making product changeovers and label roll winding simple and time-saving; Features include no-product-no-labeling, automatic label correction, and automatic detection functions;
4. Powerful functionality, utilizing a standard PLC + touchscreen + servo motor + standard sensor electrical control system for high safety standards. The human-machine interface features full Chinese annotations, comprehensive fault handling prompts, and operational guidance functions. The system is user-friendly and easy to maintain; Comprehensive equipment documentation (including structural diagrams, operational principles, maintenance guidelines, repair procedures, and upgrade instructions) ensures reliable and efficient equipment operation;
5. Features fault alarm functionality, production counting functionality, energy-saving functionality (the equipment automatically switches to energy-saving standby mode when no labeling occurs within a set time), production count setting prompt functionality, and parameter setting protection functionality (parameter settings are managed with permission-based access control);
   High stability, with labeling and object detection sensors using imported top-tier brand components, offering high detection sensitivity, stable performance, and durability; Sturdy and durable machine base and components, all designed with standardized modular components for complete interchangeability, capable of 24/7 operation to ensure safe and stable performance.
6. Safe and hygienic, with the machine housing made of stainless steel SUS304 material and T6 aluminum alloy, ensuring no rusting and compliance with GMP (Good Manufacturing Practice) standards.

Bag Labeling Machine Performance characteristics

1. Imported frequency converter stepless adjustment, high-speed automatic paging 60-600 pcs per minute.
2. Automatic counting, can also automatically set the number of pages. To the required number of pages stop, set the range: 1-99999 (need to be synchronized with the signal of the printer / laser machine / labeling machine)
3. Reasonable structural design, easy and quick replacement of wearing parts.

Bag Labeler Working Principle

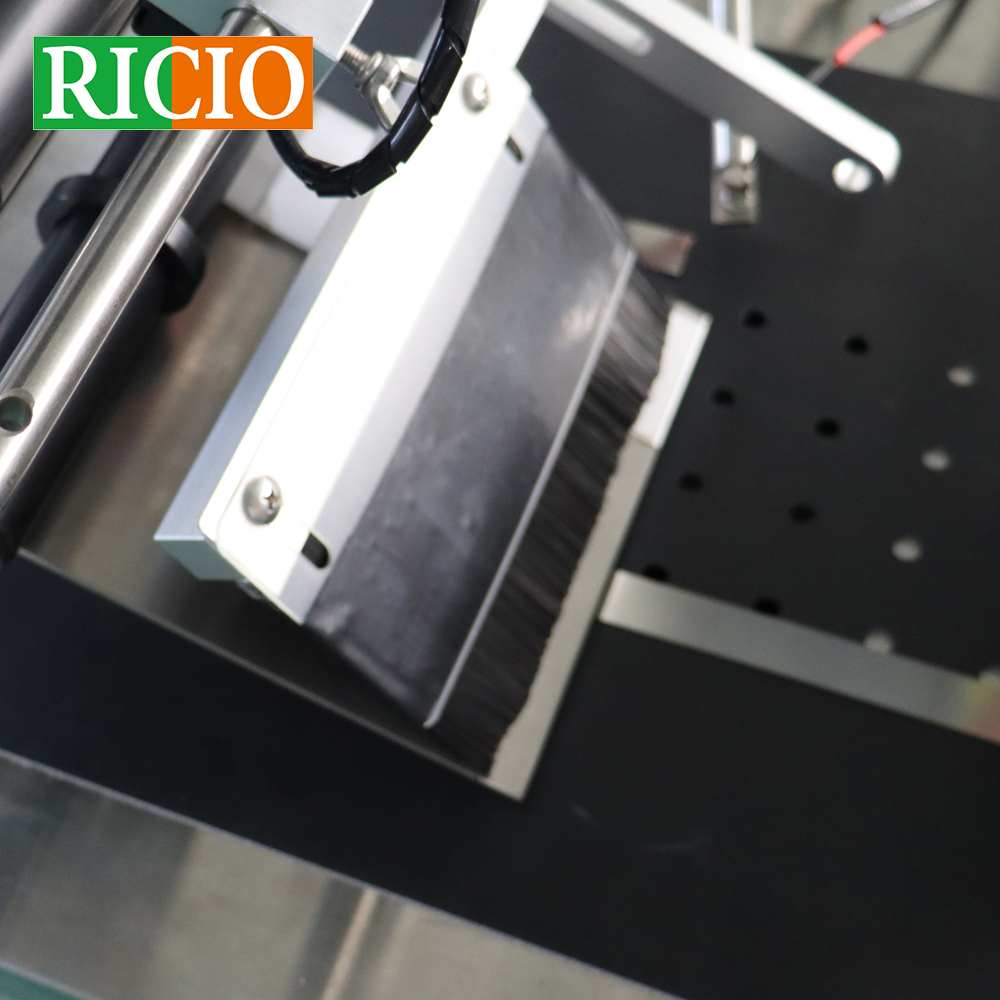

Stack the items to be labeled (such as film, PE bags, paper boxes, cards, etc.) into a single layer (limited to one type) and place them on the sheet-separating device. The sheet-separating device automatically separates the items one by one and conveys them to the conveyor belt. The conveyor belt uses vacuum suction to attach the products to the conveyor belt and move them forward. A fiber-optic sensor detects the product as it passes by and sends a signal to the labeling control system. The control system then dispenses the label at the pre-set position and applies it to the designated area on the product. The product then passes through the label-applying roller, where the label is securely applied, completing the labeling process for a single label.

Automatic Bag Labeling Machine Workflow

Manually place products on the conveyor belt -> Products are automatically separated and transported -> Product inspection -> Product labeling -> Collect labeled products -> Remove products.

Pouch Labeling Machine Scope of Application

High speed paging labeling machine is used to separate stacks of plastic bags or paper cards, cartons automatically into single pages and transfer them to the conveyor belt. It is convenient for the printer or laser machine/labeling machine to mark the products.

Card Paging Sticker Labeling Machine Optional Accessories: (NOT included in the standard config. usu.)

1. Coding Printer: Prints production dates, expiration dates, production batch numbers, etc. Stamping and labeling are performed simultaneously to improve production efficiency.
2. Spraying Inkjet Printer: Compatible with mainstream inkjet printers on the market, it can print codes on designated positions on labels, seamlessly integrating with labeling machines.
3. Omni-Sensor: Ordinary sensors cannot detect transparent labels; therefore, a special optical sensor imported from Germany must be used in conjunction with the system.
4. Data Reader: can read 2D QR codes, barcodes, and other information to facilitate the establishment of a product database for traceability purposes.
