Instant Printing Labeling Machine VIDEO

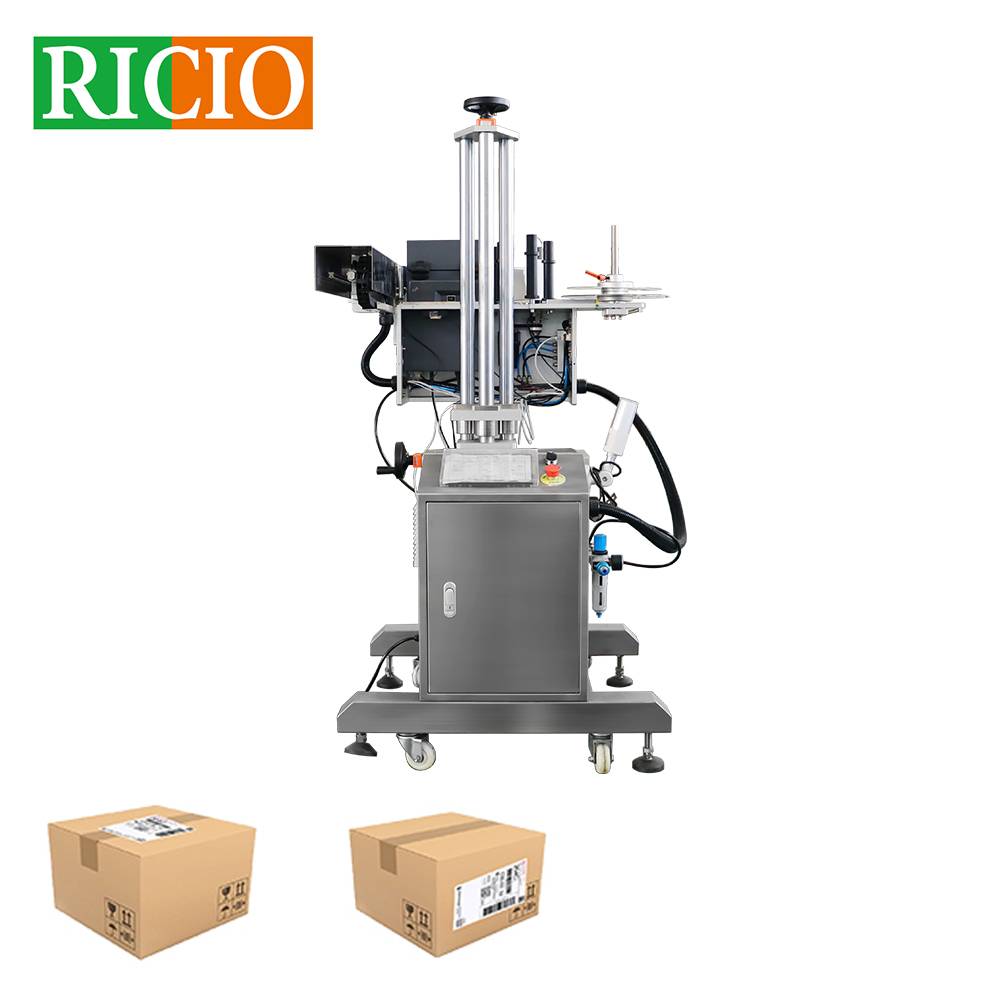

Print and Apply Case Labeler Performance

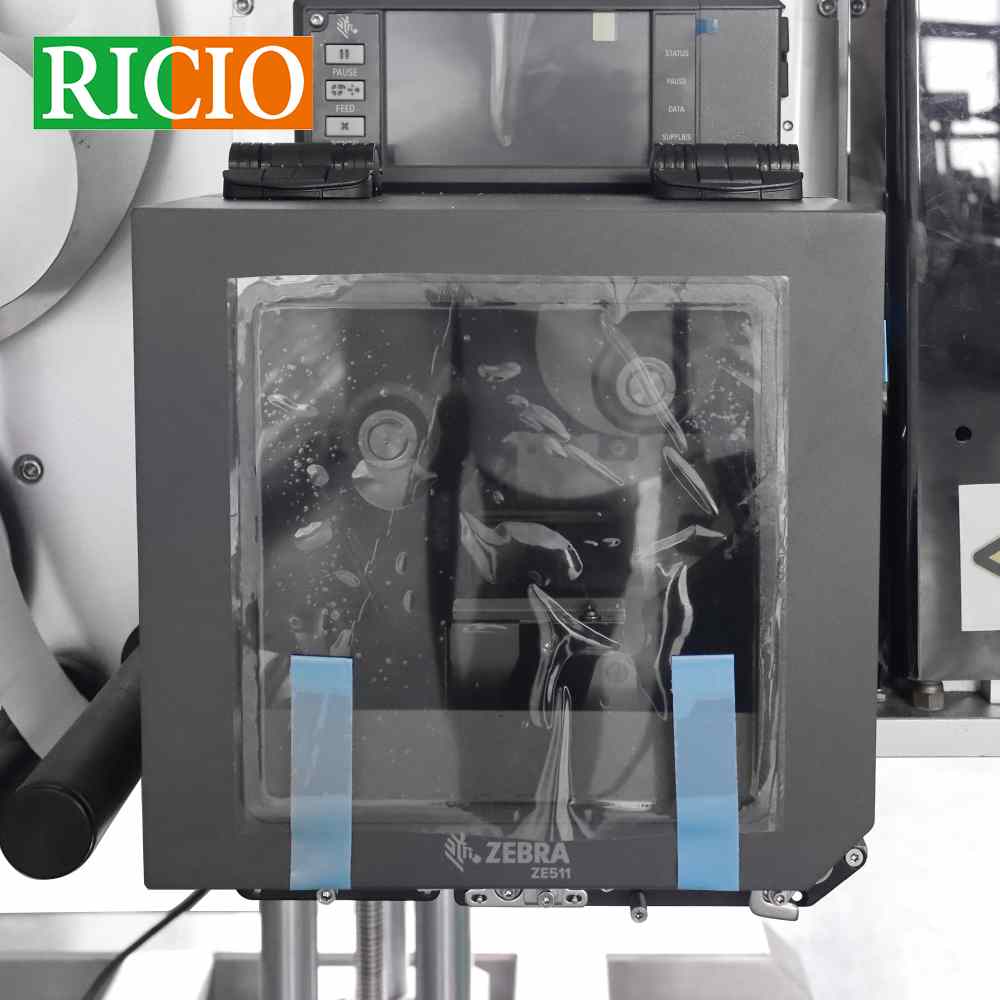

(1)equipped with the high quality Zebra Brand Barcode Printer
(2)maximum label printing accuracy: 600dpi
(3)labeling accuracy: ±0.5 mm
(4)the fastest printing and labeling speed can reach 60 times per minute.

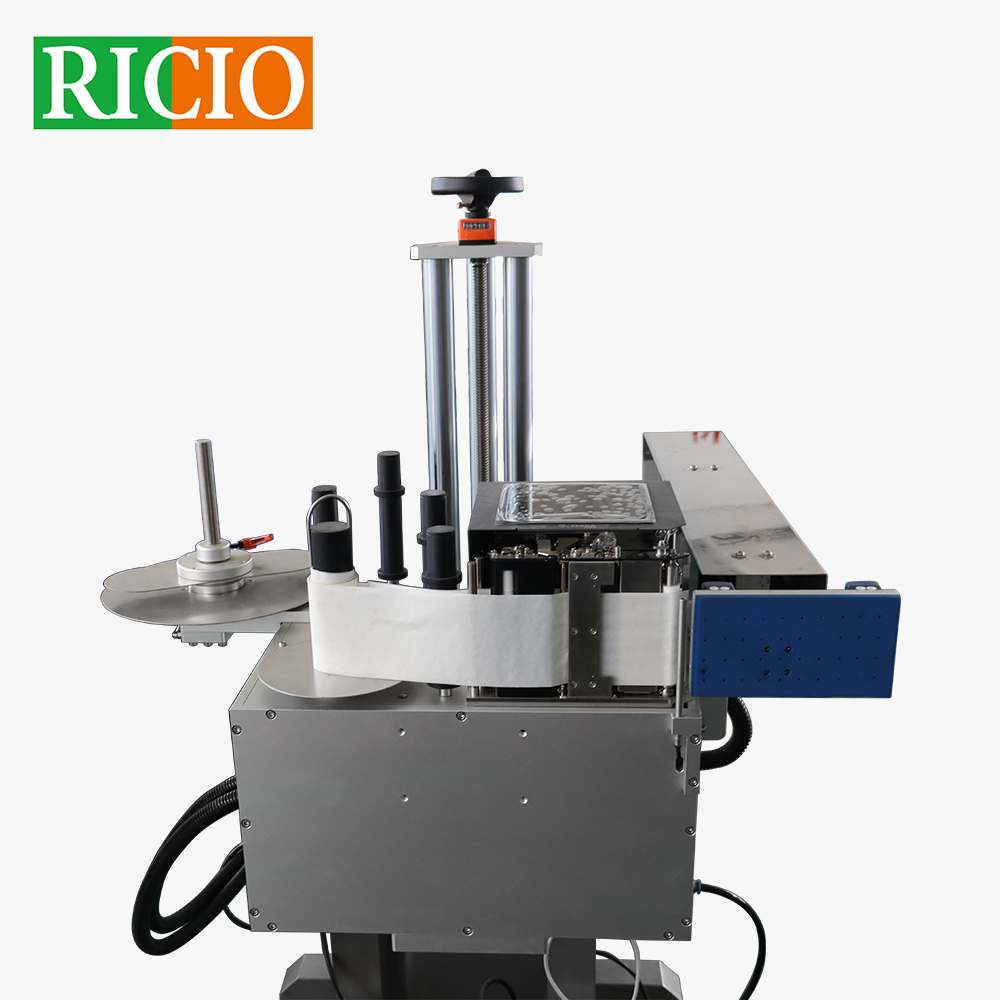

(5)the label unwinding unit, label rewinding unit, label printing unit and labeling unit are designed rationally with installed flexibly and conveniently.
(6)Equipped integrated printing and labeling control card that can automatically configure, debug, monitor and record machine operation
(7)Real-time communication with PLC, barcode scanner, machine vision device, weighing device, detecting device, etc.
(8)Can be seamlessly integrated into main systems, such as ERP, via ODBC, XML or other data interfaces
Print & Apply Label Applicator Tech. Parameters
| Labeling Mode | Pressing Blowing Type |
| Maximum Labeling Speed | 60pcs/s (depends on label size, printing speed, printing accuracy, labeling method) |
| Standard labeling stroke | 280mm |
| Minimum labeling Size | 8*8mm |
| Labeling Accuracy | ±1 mm |
| Printing Performance | |
| Printing Mode | TTO/ Direct thermal |
| Printing Width | 104mm (4.1”) / 168mm (6.7”) |
| Printing Accuracy | 300 dpi |
| Ribbon Length | 900m |
| Bar Code System | |
| one dimensional code | Codabar, Code 11, Code 39, Code 128 with subsets A/B/C, UCC Case codescode 93, EAN-8, EAN-13, Industrial 2-of-5, Interleaved 2-of-5, IBST-128, Logmars, MSI, Planet Code, Plessey, POSTNET, Standard 2-of-5, UPC-A, UPC-E, UPC and EAN 2 or 5, digit extensions |
| Two-dimensional code | Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF, PDF417QR Code and TLC 39, Aztec |
| Optional Device | Customized development of print label application software according to customer needs |
| Customized special labeling board according to working conditions and customer needs | |
| German SICK fixed laser barcode scanner for automatic identification of products before printing | |
| Self-adjusting T-bracket to accommodate different label height requirements | |
| Interface | 3 in 3 out of general purpose I/O (24VDC), 3-way RS-232, 4-way USB, 1-way network port |
| Power Supply | 220 V single phase AC, 50-60 Hz, ≤300W |
| Gas supply | Pressure >0.6 MPa, flow rate >90L/min |
| Dimension | 750mm(L) x 480mm(W) x 650mm(H) |
| Weight | 55kg |
Print and Apply Label Applicator Systems Advantages & Features

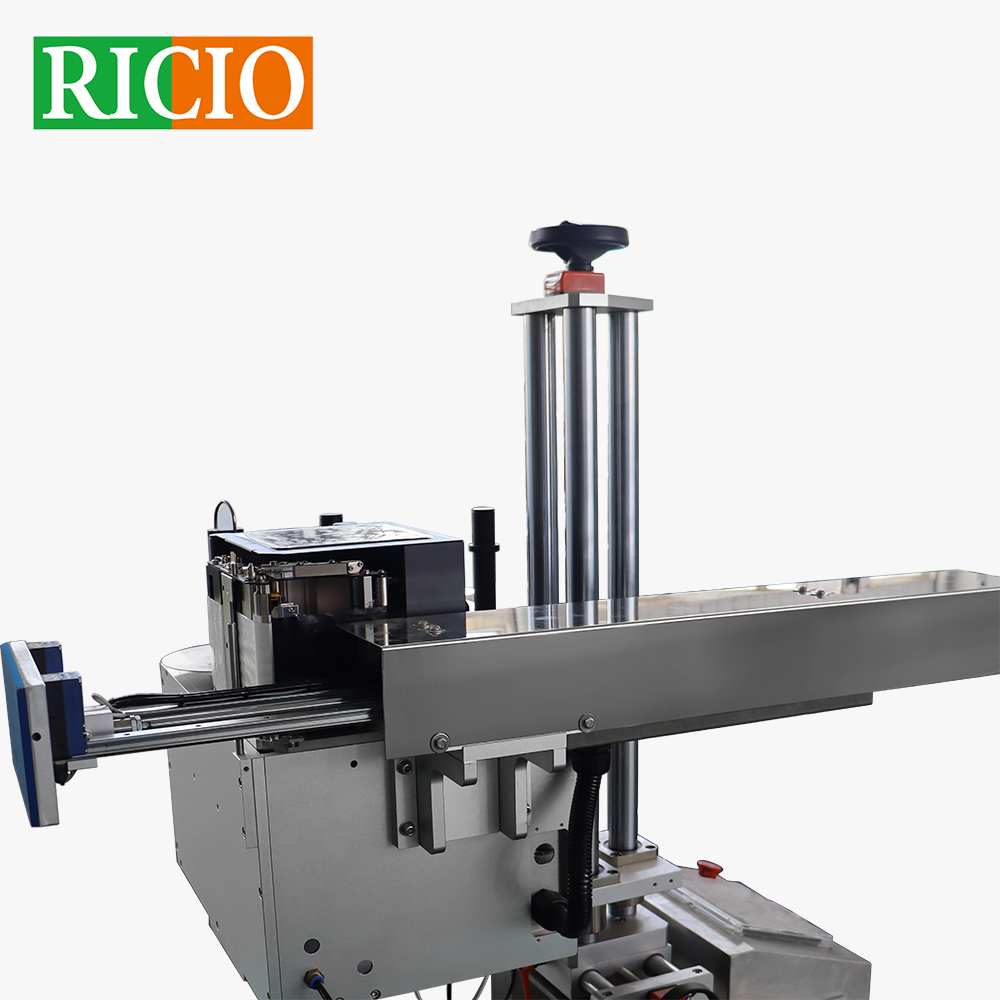

With high speed long-life pneumatic pressing label arm
With blowing gas type label plate for non-contact blowing of label surface
Labeling Precision: ±1 mm
The maximum printing and labeling speed can reach 60 times per minute.
Suitable for top side labeling, side labeling, bottom labeling.
Label Print and Apply Machines Working Principle
(1)The system transfers the data to a computer, which sends the data to the printer. The printer prints the label. When the label is peeled off, the suction cup sucks the label, and then the cylinder pushes the suction cup to push the label to the position to be attached.
(2)The machine detects the arrival of the product and attaches the label to the product.
Label Printer and Applicator’s Label Type Requirements
(1)Single Row Label, Label interval: 2-3mm
(2)Margin of label and bottom paper: 2-3mm
(3)Bottom paper material: glassine paper
(4)Label die cutting accuracy: ±0.2 mm, can’t cut the bottom paper
(5)Maximum label roll outer diameter: 300mm
(6)Label roll inner diameter: 76.2mm

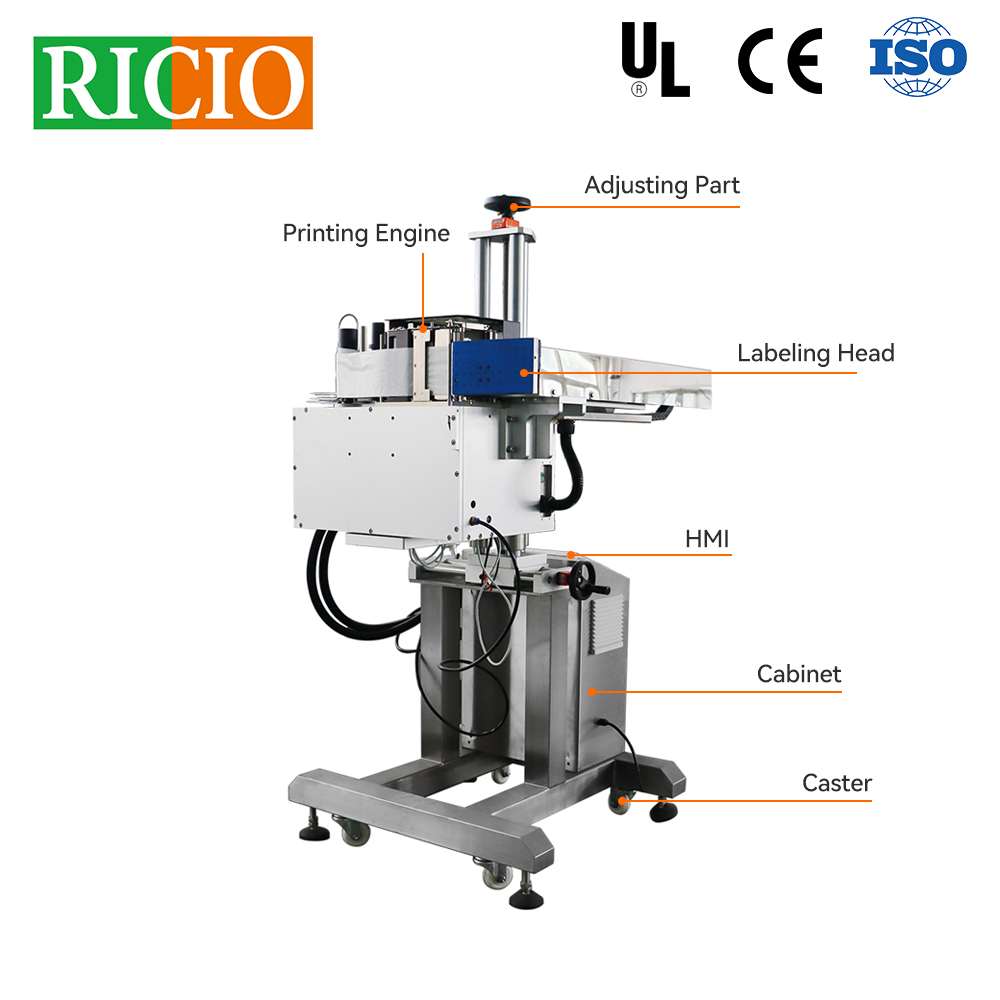

Label Printing and Labeling Machine Components List
| Printer | Zebra 105SLPLUS Barcode printer |
| Air Cylinder | Festo |
| PLC | Siemens |
| Product testing device | Leuze |
| Electron Magnetic Valve | SMC |
| Touch Screen | Siemens |
| Electrooptical Switch | Festo |
| Power Supply | Mean Well |
Flat Labeling Printing Machine Intelligent Operation: (optional accessories)
- The printing and labeling control software, which can monitor the running status and fault information of the printing labeling machine in real time, debug machine online, set the user and authority, and query the printing and labeling job record
- Label editing software, which can customize label formats, data sources and printing rules.
- Automatically acquire information from inspection instruments such as barcode scanners or weighing device and print them into labels
- Real-time connection to bar code scanners or machine vision devices for label quality inspection to ensure the accuracy and legibility of bar code, image or text information on the label.
- Professional software development and project implementation team, which can complete complex barcode, RFID printing and labeling applications, and ERP, WMS, MES, industrial automation integration projects to help customers achieve product identification, quality traceability and logistics tracking.
