Rotary Labeler VIDEO

Compact Labeling Machine Rotary Performances

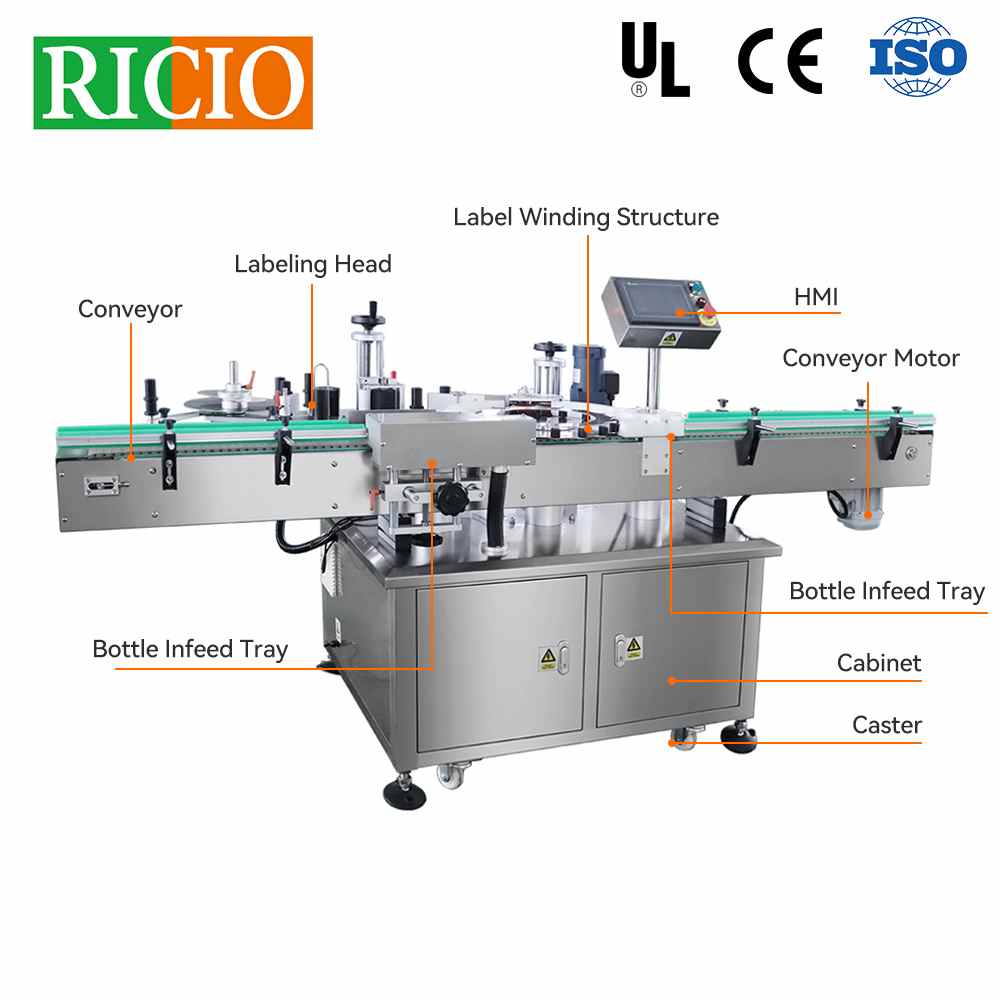

Star Wheel Orientation Self-adhesive Labeling Machine RXL-W according to the principle of automatic labeling and technical requirements for special design and manufacture. Especially suitable for matching the production line; has a compact structure, light weight, simple operation, reliable operation, easy maintenance, fast labeling speed, labeling smooth and beautiful adaptability and other advantages, is the modern labeling machinery in the best products.

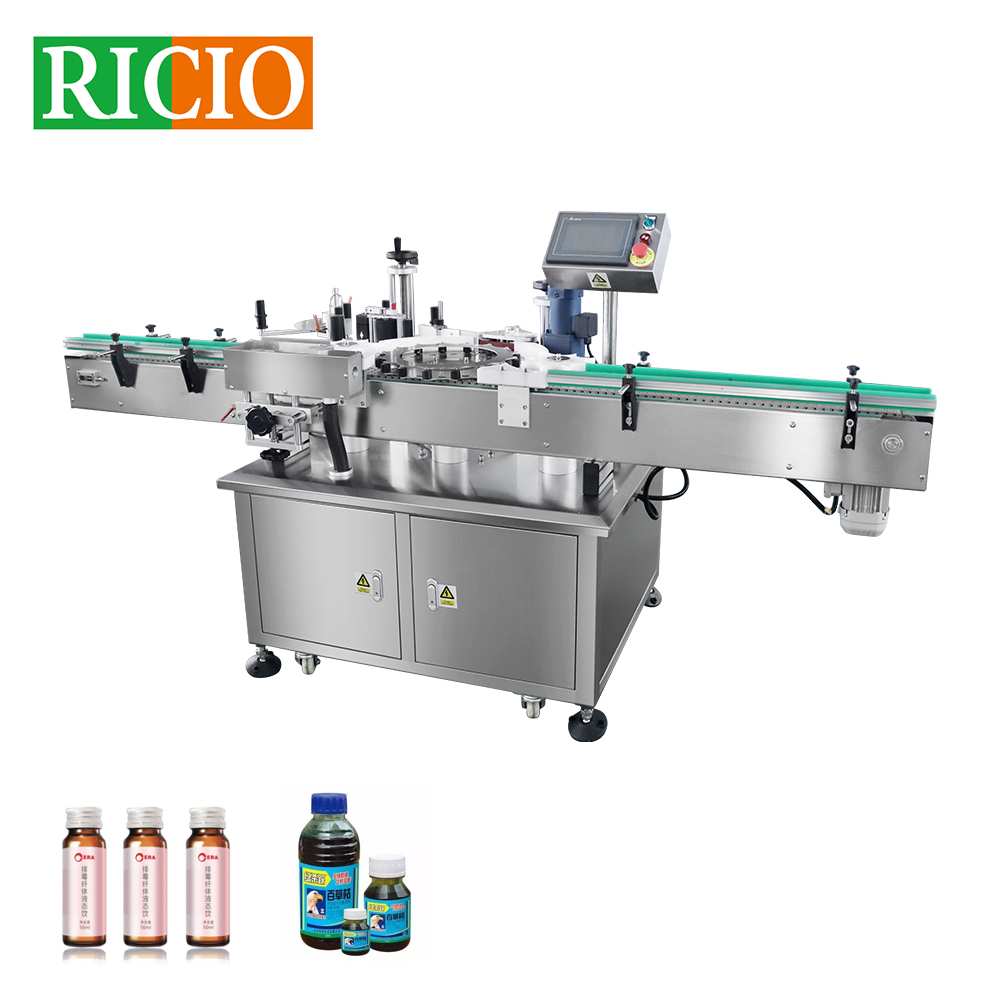

Star Disk Positioning Self-adhesive Labeling Machine to achieve reasonable production goals and design. The labeling process is automatic operation, simple operation, fast production speed, uniform labeling location, beautiful, neat, applicable to pharmaceutical, chemical, food and other industries, circular containers labeling, full Circle and semi-circle labeling can beaffixed. Optional Ribbon Printer and inkjet printer, labelprinting production batch number, production date and other information, Realize the integration of label and spurt code,reduce packaging process, improve production efficiency.

Rotary Labeling Machine Paramenters

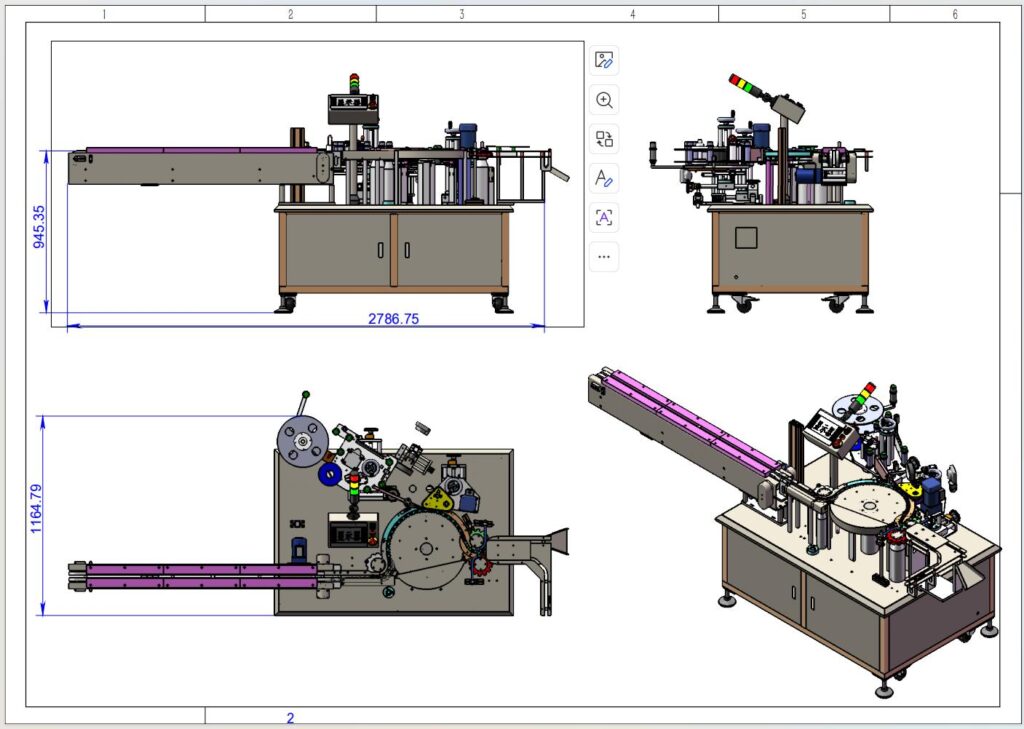

Round Plate Labelling Machine’s Mechanical Design

(1) Super wear-resistant label rolling mechanism, using hard aluminum sandblasting treatment, durable and not easy to wear.

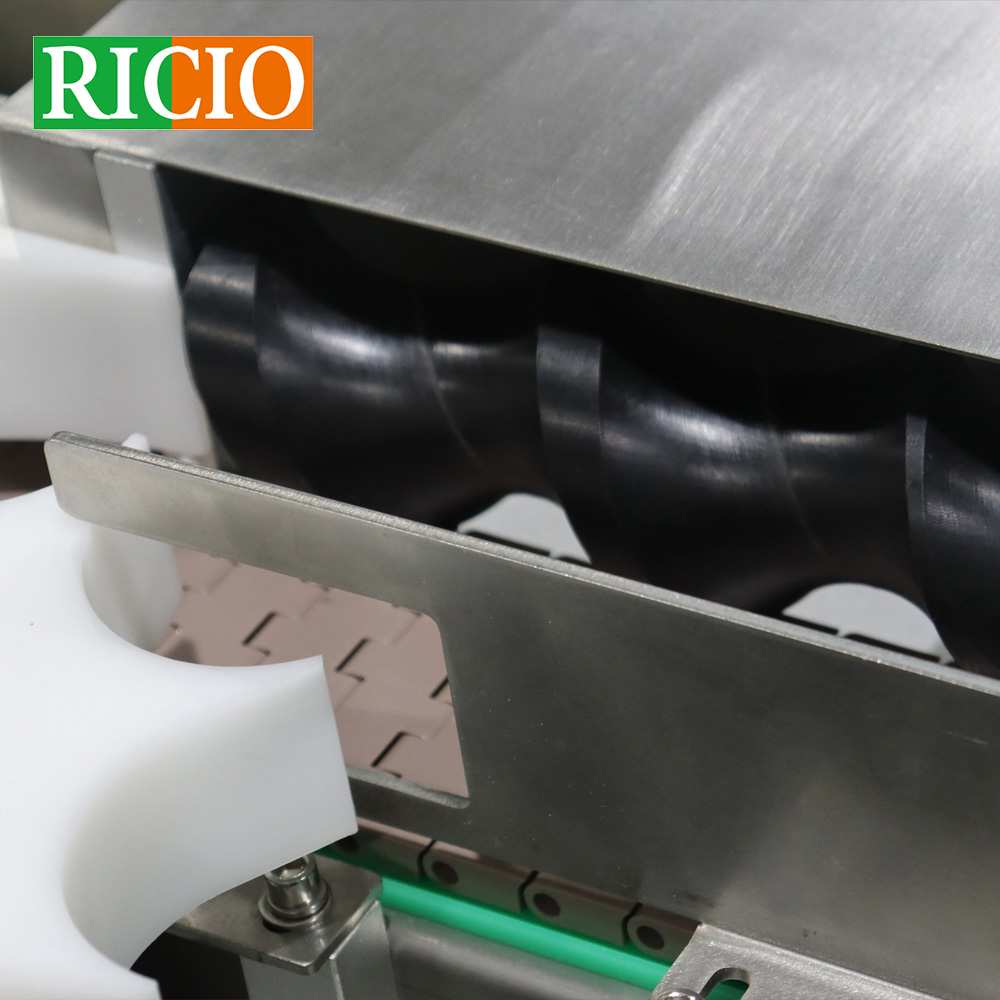

(2) Precise differential speed bottle dispensing mechanism, bottle dispensing accuracy up to ±5mm, replacing bottles of different specifications without the need to replace parts, cost savings, easy to adjust, better than other brands.

(3) Stable and durable machine base and various parts, are adopted standardized modular design with complete interchangeability, 24-hour operation, to ensure safety and stability.

(4) The chassis is made of stainless steel SUS304 and T6 aluminum alloy, which never rusts and conforms to GMP standard.
-Printing head adopts solenoid valve to control the cylinder for reciprocating motion, compared with the crank linkage movement, the reaction speed and printing speed are greatly improved.

-Printing date, production lot number and expiration date can be completed at the same time, and the printing direction can be adjusted according to the user’s needs. Clear handwriting, hygienic and clean.

Star Disk Positioning Self-adhesive Labeling Machine Features+Advantages+Benefits: (FAB）

Why Choose Us: The motor adopts Japan Panasonic servo labeling system, Taiwan Delta PLC and function module, Panasonic servo main motor out of the label, Delta frequency conversion regulation: stability and synchronization is very high, the fastest response speed up to 1200 times / min, and torque is strong, never out of step.
I. Germany Siemens microcomputer control system.
The real FUZZY (intelligent) free setting, free adjustment, as long as the power on, the system has completed all the labeling algorithms and preparations, press the start button can be pasted out perfect products.
II. Operation mode.
A. Imported touch screen human-machine interface, full Chinese display, as long as the display screen in accordance with the instructions for operation, without any experience, can easily on-line, greatly reducing the staff training time; through the human-machine interface can be arbitrarily set the production speed, can automatically adjust the production speed, can be matched with the speed of any production line for the most effective production operation.
B. If there are abnormal faults: such as labels run out, broken tape or leakage, counting set to reach, mechanical abnormalities, etc., will automatically shut down to send an alarm.

Positioning labeling working principle

Bottle from the conveyor belt into the positioning astrolabe (for intermittent movement) and then by the positioning astrolabe clockwise rotation to the labeling area, roll labeling wheel driven bottle rotation in place, at this time, the detection photoelectric detects the bottle and sends a signal to the PLC, PLC to pull the labeling motor sends out an action command; labels from the peeling mouth peeled off the sticky to the bottle, the bottle with the label in the rotation, the label will be affixed to the whole bottle; in the stop labeling photoelectric detection of Label gap to the PLC sends a signal; PLC to pull the labeling motor to issue a stop command to complete the first label labeling, the second labeling start command is through the detection of the roll labeling wheel motor after the completion of the first labeling rotating angle size to determine the starting position. Labeling action is the same as above; in the end of the surface of the two labeling, positioning astrolabe rotates again, will complete the labeling of the bottle sent out to bring in the next bottle to the labeling area.
Positioning astrolabe: It adopts high precision intermittent splitter, which has the features of high precision indexing, smooth high-speed operation, large transmission torque and self-locking positioning, etc. It can accurately position the bottles to improve labeling. It can accurately position the bottles to improve labeling accuracy.
Rolling labeling wheel: motor driven, through the control of the number of pulses to control the amount of angular fixed shift, so as to achieve the purpose of accurate positioning, accurate calculation of the first and last position of the two labels.

Rotary Labeler Workflow

Bottle through the conveyor belt into the astrolabe, through the bottle measuring eye, triggering the bottle measuring eye to give a signal to the PLC, PLC delay control dial clockwise rotation of a working position, when the bottle is located in the position of the labeling rollers, the bottom of the bottle labeling bottle measuring eye to see the bottle, at the same time, the bottle has been rotating with the labeling rollers kept rotating in place of the original clockwise rotation, stop the labeling measuring eye to give a signal to the PLC, when When the bottle at the bottom of the positioning electric eye to see the bottle at the bottom of the positioning mark, positioning electric eye and then give a signal to the PLC, at this time the PLC controls the label feeder delay out of a label pasted on the bottle, at the same time in the labeling rollers under the cooperation of the whole label firmly rolled on the surface of the bottle, paste, after the star-shaped pulling plate clockwise rotation of a working position, the bottle is transported out to complete the entire labeling process.

Rotary Labeling Machine Parts Configuration List
