Shipping Label Applicator Tech. Parameters
| Voltage | AC220V 50/60HZ |
| Power | 1500W |
| Capacity | 30~100pcs./min（Adjustable speed, depending on object size and label length） |
| Accuracy | ±1mm（depends on object&label sizes and labeling pattern） |
| Weight | 200kg |
| Dimension | 1500*400*1500mm |
| Applicable product size | length: 40-400mm; width: 40-500mm; height: 0.2-150mm |
| Applicable Label Size | |
| Label Size | H10mm~150mm L15-300mm（Can be customized） |
| Size of Paper Roll | Inner diameter of label roll:Ф76mm；outer diameter of label roll:Ф300mm |
| Conveyor Width | Can be customized according to the diameter of the sample bottle |
Automatic Marking Machine Work Process

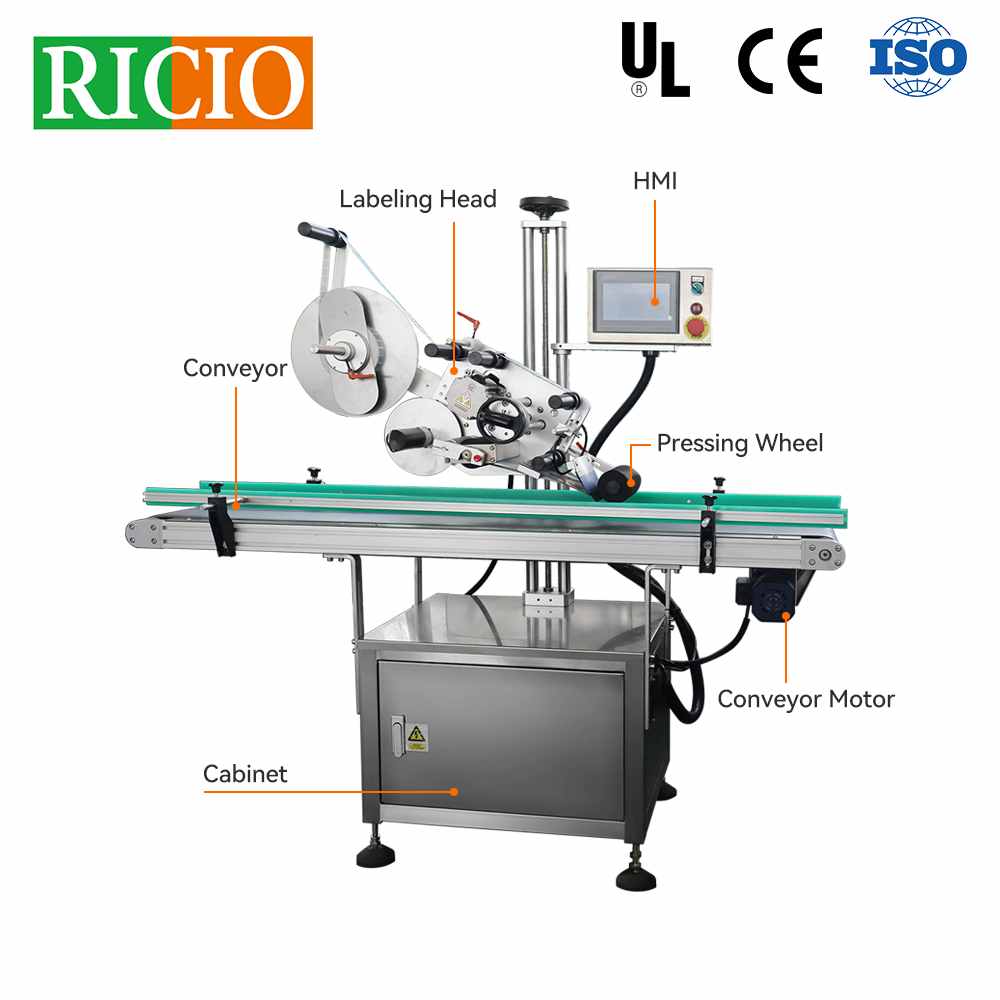

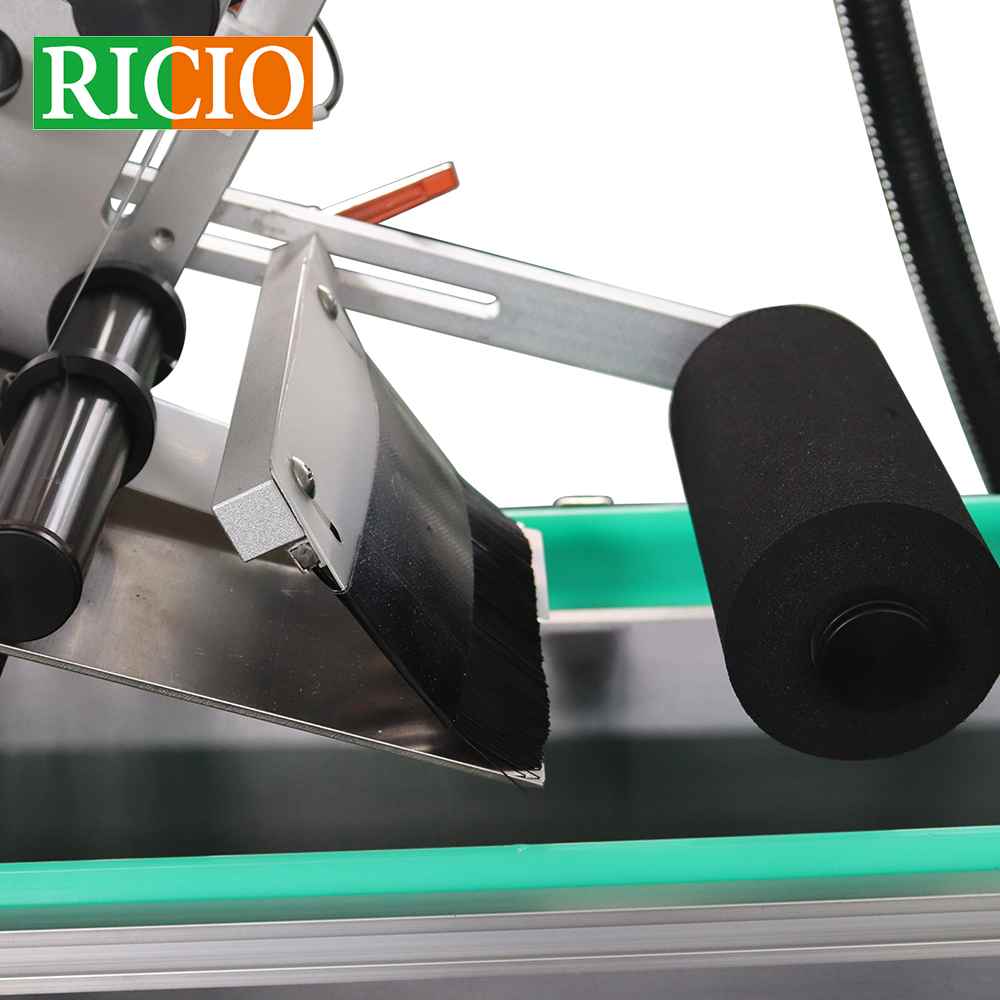

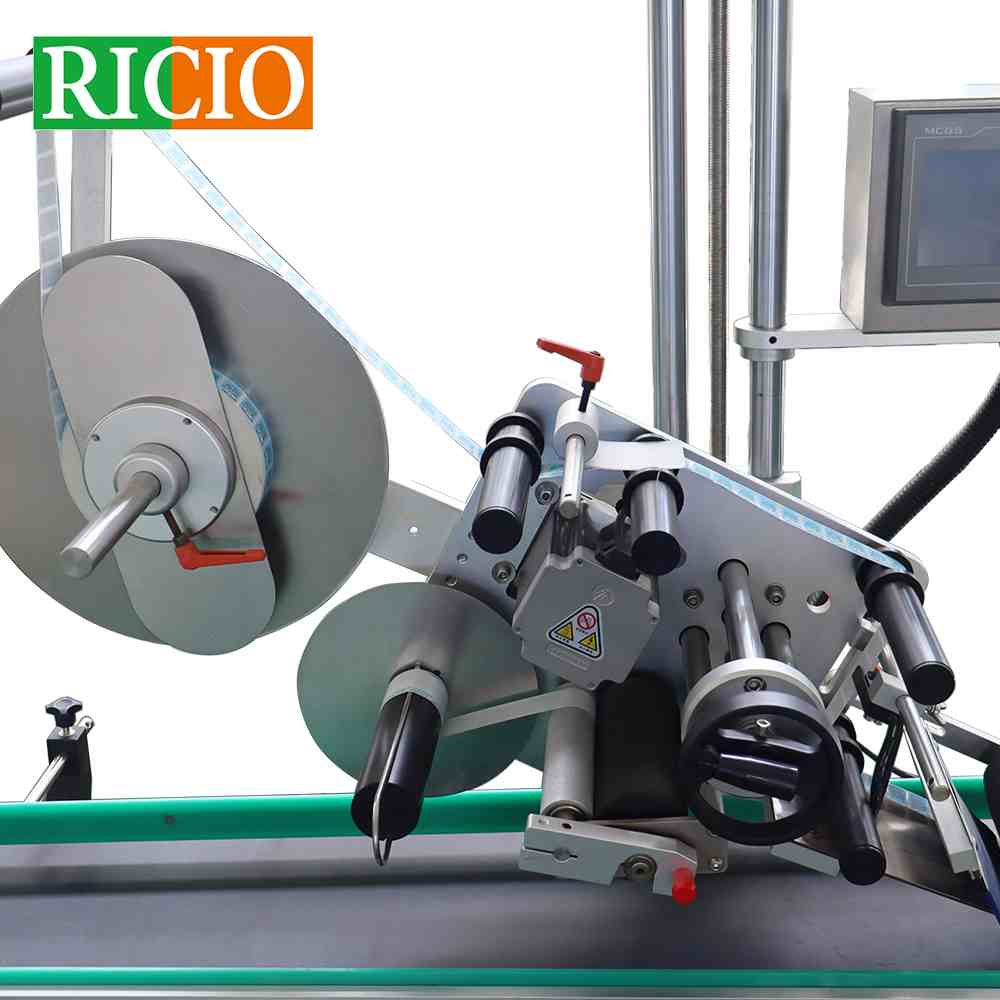

Core working principle: the sensor detects the product passing by, sends back the signal to the labeling control system, at the appropriate position the control system controls the motor to send out the label and attach it to the product to be labeled position, the product flows through the labeling roller, the label is rolled to cover, and the labeling action of a label is completed.
Operation process: put the product -> product separation and conveying (equipment automatic realization) -> labeling (equipment automatic realization) -> collection of labeled products (equipment automatic realization) -> take away the product.
Bill Sticker Labeling Machine Scope of Applications
Applicable labels: self-adhesive labels, self-adhesive film, electronic regulatory code, bar code, etc..
Applicable products: products that require labeling or film attachment on flat surfaces and large curvature surfaces.
Config. List (according to the warehousing status)
| Parts Name | Qty | Brand |
| Labeling stepping motor | 1 | YAKOTEC |
| Labeling motor driver | 1 | YAKOTEC |
| Conveyor motor | 1 | TQG |
| Conveyor motor gear box | 1 | TQG |
| Labeling optoelectronics | 1 | SEAGATE |
| Label detection optoelectronics | 1 | SEAGATE |
| PLC | 1 | RICIO |
| HIM | 1 | RICIO |

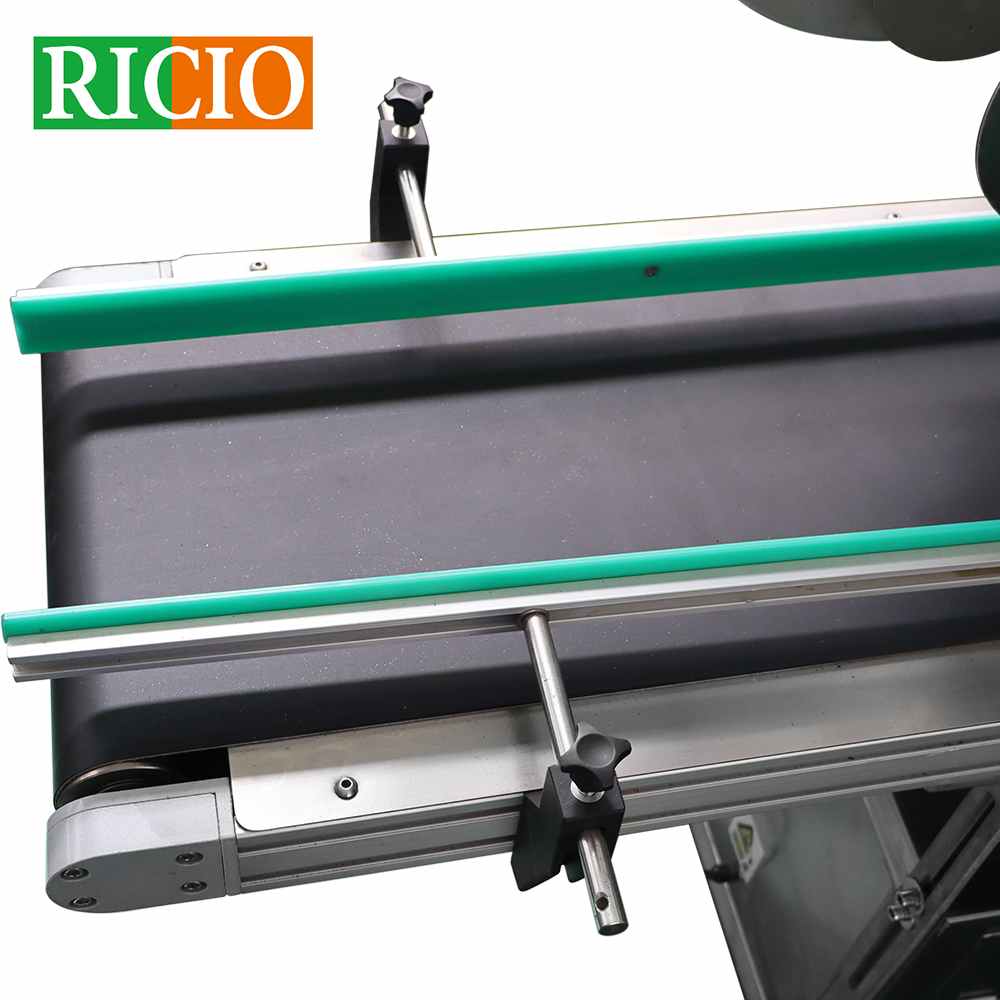

| Conveyor | 1 | MAXSEN |
| Low voltage appliance | 1 | CHNT |
| Synchronous toothed belt | 1 | SAMUSUNG |
Automatic Express Box Labeling Machine Basic Use
Dedicated to a variety of courier single labeling equipment logistics single labeling, labeling speed, high accuracy, labeling film without bubbles.
