Desktop Label Applicator VIDEO

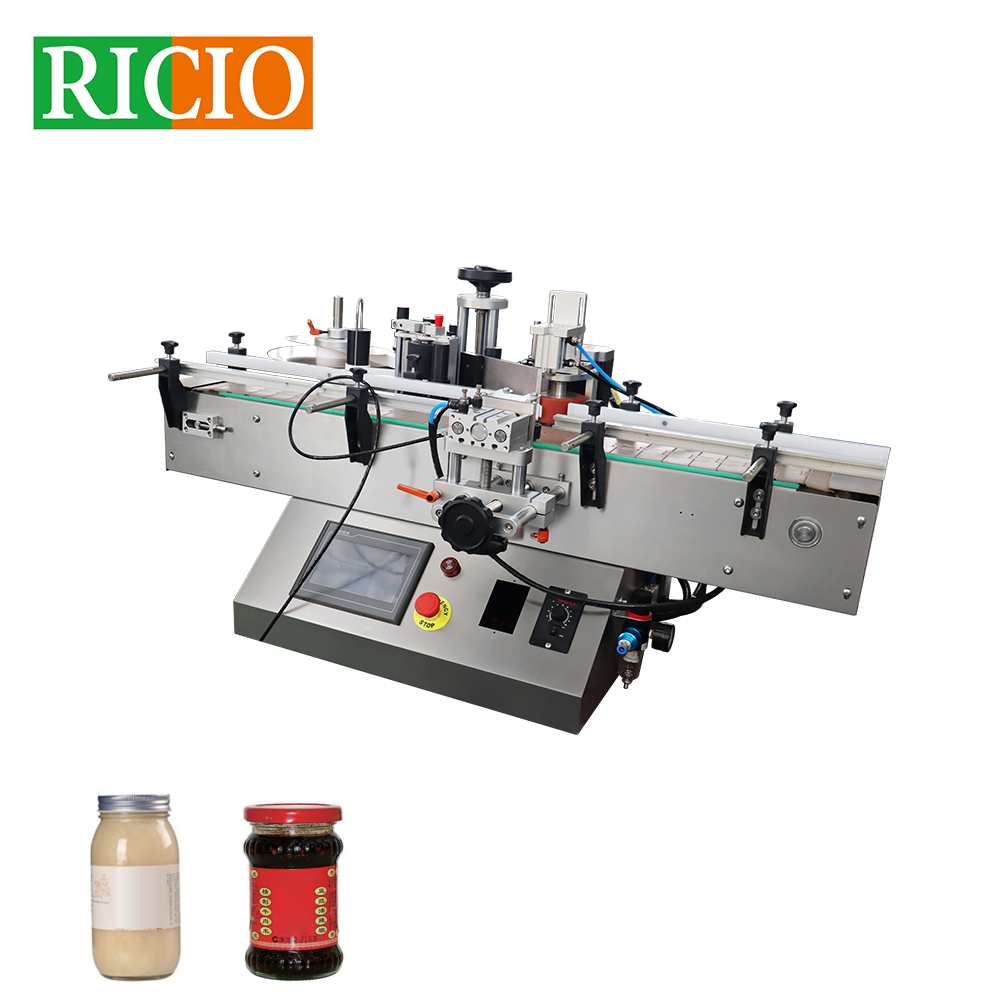

Table Top Labeler Working Principle

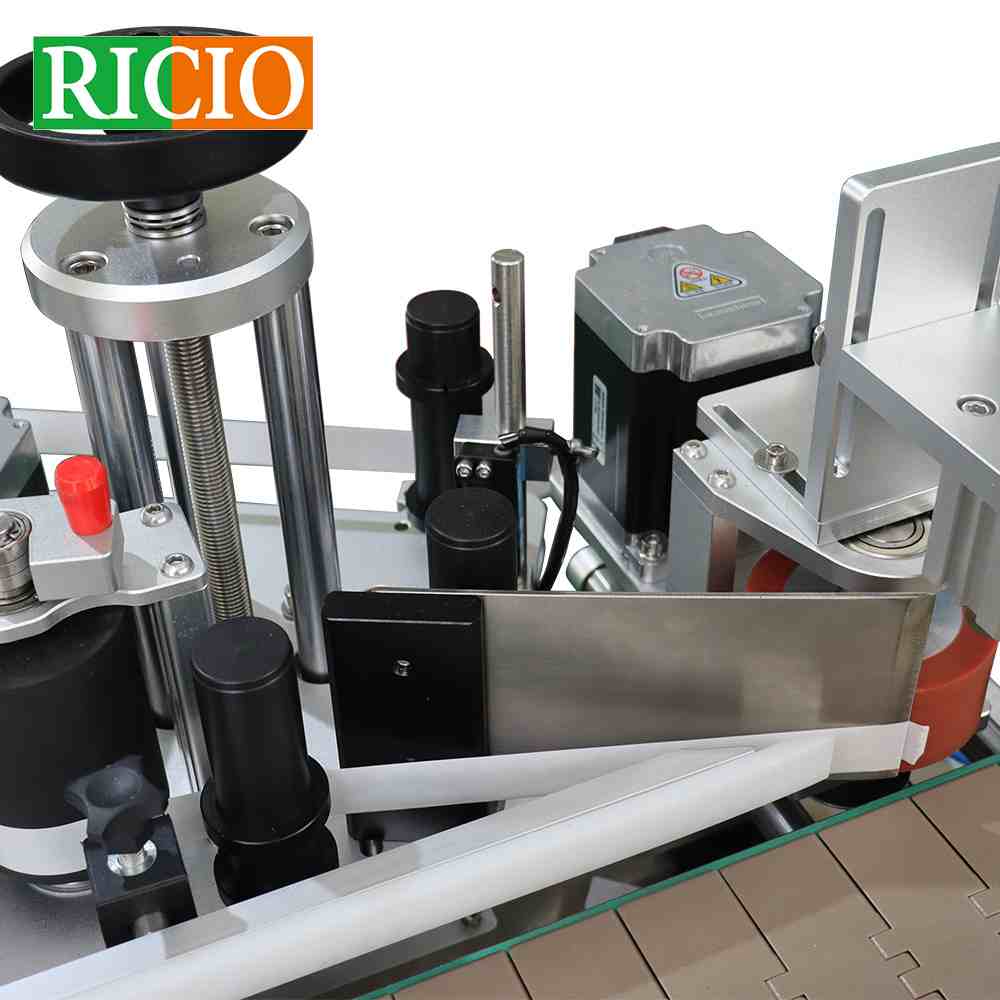

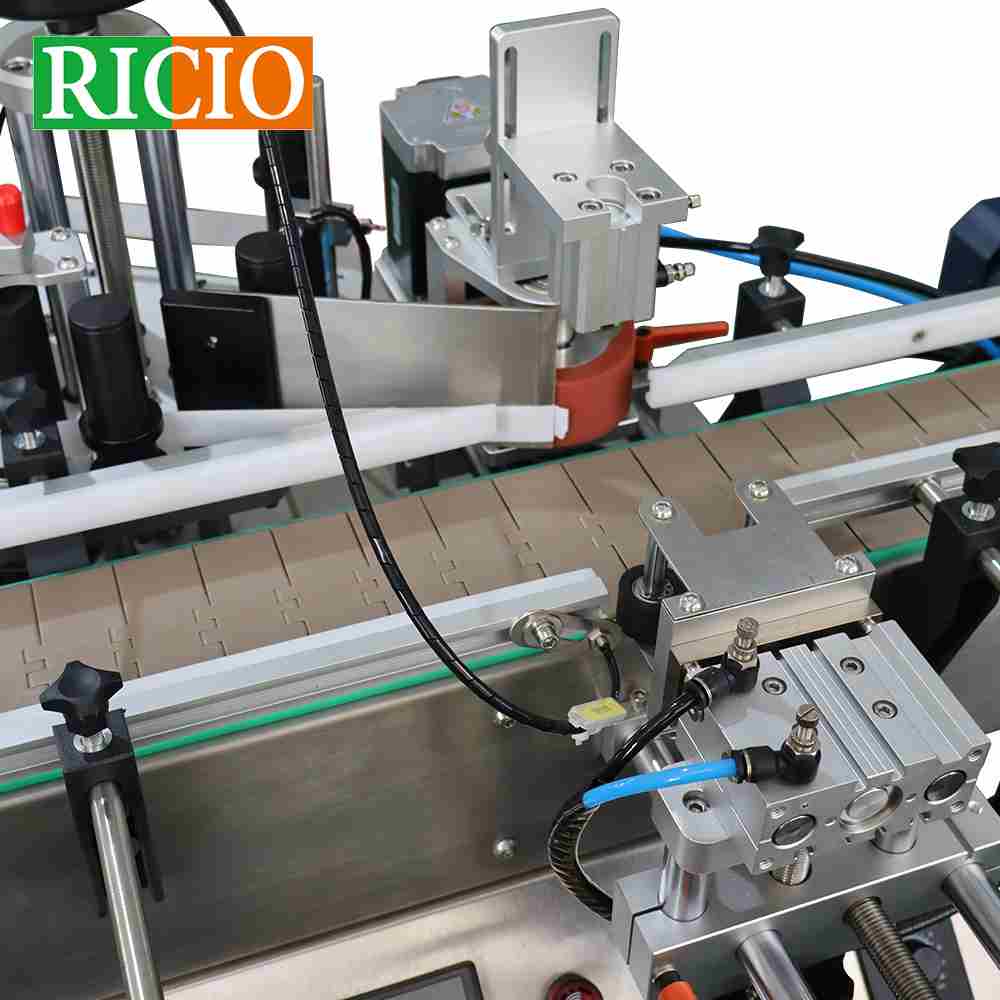

After entering the conveyor belt of labeling machine, bottles are fed at a constant speed. Fixed devices on the machinery maintain a fixed distance between each item to be labeled while propelling them forward along the conveyor belt. Driven by the mechanical system (drive wheel, labeling wheel, and label roll), the drive wheel intermittently pulls the label tape, drawing labels from the roll. These labels are then applied to the items via the labeling device.
Tabletop Labeling Machine Technical Parameters
| Voltage | (default) AC220V 50/60HZ (variable power supply if needed such as US spec. 110V, or Industrial 380V 50Hz 3-phase) |
| Machine Power | 800W |
| Labeling Speed | 30-100 bottles per minute (flux, and the speed is hinged upon product size, label size, manual feeding speed and other factors) |
| Labeling Accuracy | +1mm (flux, depending on product characteristics, softness & hardness, roundness, etc.) |
| Machine Size | 1200*880*800mm |
| Machine Net Weight | 100KG |
| Conveyor Width | can be adjusted freely so as to match use’s product sizes. |
| Bottle Diameter Range | 25-120mm (machine can be customized/bespoke if out of normal diameter range) |
| Bottle Height Range | 40-150mm (machine can be customized/bespoke if out of normal height range) |
| Label Size Range | Label’s Height: 10-150mm Label’s Length: 15-300mm (machine can be customized/bespoke if out of normal label size range) |
| Label Roll Spec. | Inner Diameter: Φ76mm (min.) Outer Diameter：Φ300mm (max.) |

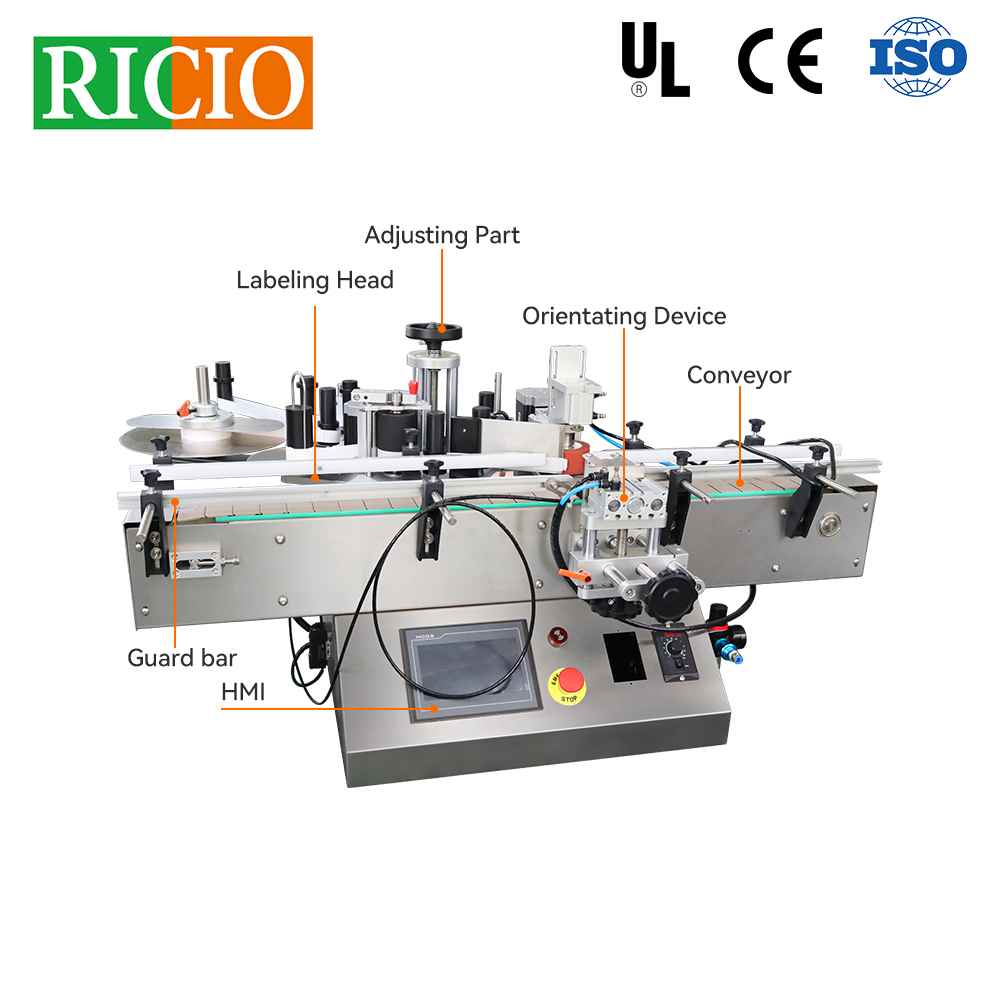

Table Top Label Applicator Features+Advantages+Benefits (FAB)
1 Simple Adjustment: Configure front/back, left/right, up/down direction, horizontal tilt, and vertical tilt adjustment seats. Seamless switching between different bottle shapes with no blind spots, meeting GMP production requirements;
2 Automatic bottle separation effectively eliminates separation irregularities caused by bottle variations, enhancing stability;
3 Features automatic shutdown, production counting, power-saving mode (transitions to standby when idle for set duration), production count alerts, and parameter protection (with permission-based management) for streamlined production oversight;

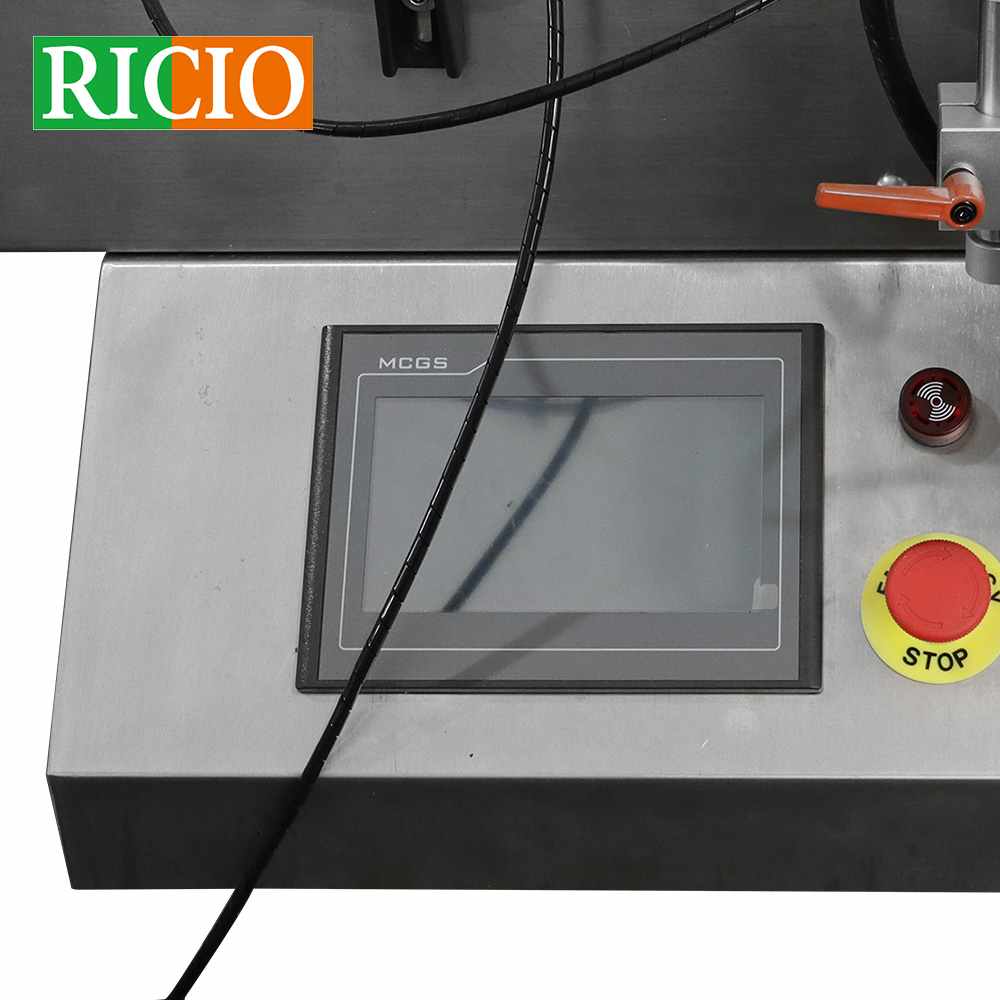

4 Powerful functionality with color touchscreen control and selectable Chinese/English language interface for intuitive operation. Robust data memory stores 50 labeling parameter sets. Features production counting, power-saving mode, production count alerts, and parameter protection for streamlined management.
5 One-Touch switching between product labels eliminates repeated adjustments for simplicity and speed. Comprehensive fault alerts and help functions included;
6 High Stability RUN: Label and object detection sensors utilize premium imported brands, ensuring high sensitivity, stable performance, and durability. The robust base and components feature standardized modular design with full interchangeability, enabling 24/7 operation for guaranteed safety and reliability.
7 Safe & Hygienic Processing: The chassis employs SUS304 stainless steel and T6 aluminum alloy, ensuring excellent rust resistance and compliance with relvevant GMP production standards.
Tabletop Droppers Labeling Machine Working Processing
1 Manual product placement (via conveyor or bottle sorting turntable) →
2 Automatic product separation, alignment, and conveyance →
3 Product inspection →
4 Labeling Processing →
5 Collection of labeled products (for next process) →
6 Product removal. (the labeling work complete)
Automatic Tabletop Glass Dropper Labeling Machine Optional Accessories
1 Coding Printer: can print production dates, expiration dates, production batch/lot numbers, etc. Simultaneous coding + labeling so as to enhance packaging labeling work’s efficiency a lot.
2 TIJ (Thermal Inkjet): Compatible with mainstream inkjet printers on the market, which prints codes at designated label positions, seamlessly integrating with labeling machine perfectly.
3 Universal Sensor: Ordinary sensors cannot detect transparent labels; while a specialty high-level optical universal sensor imported from German Brand – LEUZE is recommended to be adopted to ensure high quality labeling work
4 Packaging Work Data Reader: Can read QR codes, Barcodes, and other data /information to facilitate the establishment of production database for traceability afterwards.
