Flat Surface Labeling Machine VIDEO

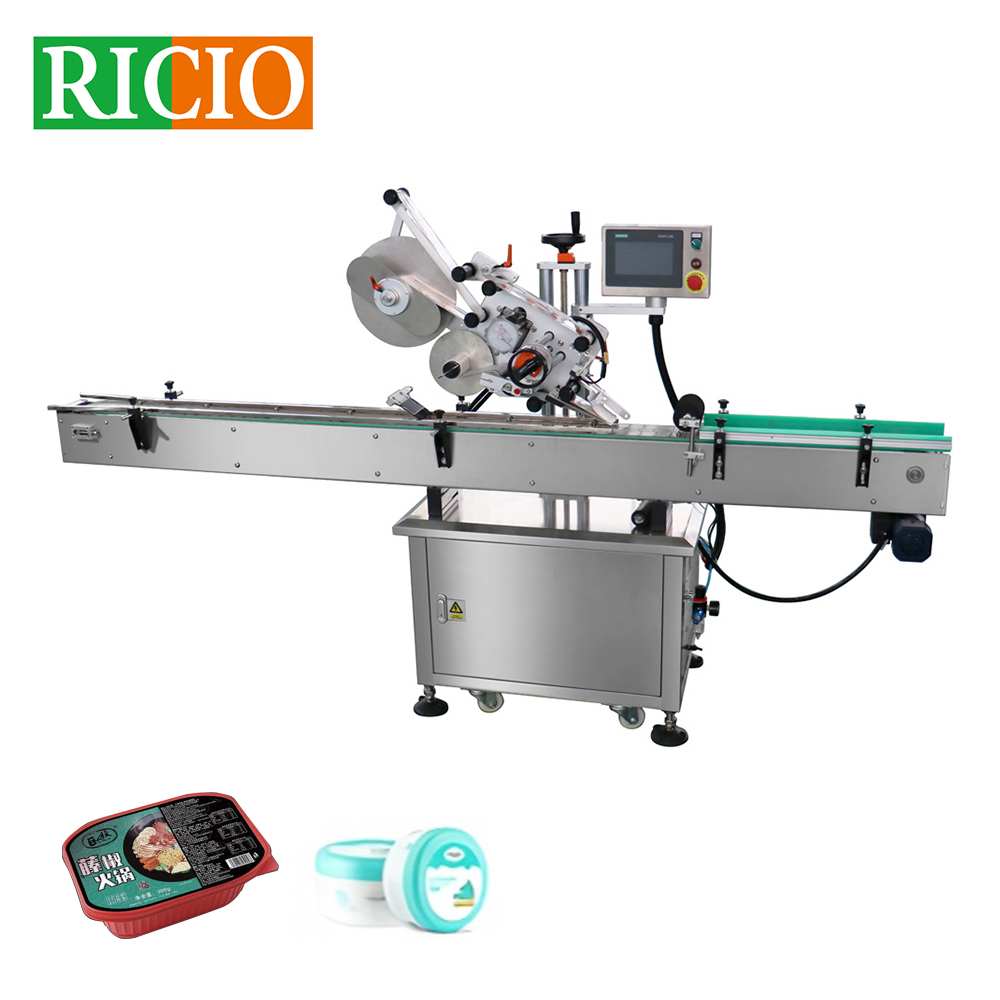

Top Labeling Machine Tech. Parameters
| Capacity | 30~100pcs./m（Depend on the size and coding of the object and label） |
| Accuracy | ±1mm |
| Label Supply Speed | 3~30m/m |
| Roll Inner Diameter | Φ76mm |
| Roll Outer Diameter | Φ300mm |
| Voltage | 220V±5% 50/60Hz |
| Weight | 200KG |
| Dimension | 2100*1100*1500mm |
| Adapt to Product Size | Customize conveyor belt according to the product |
Flat Label Applicator Features & Advantages & Benefits (FAB)
- The entire electronic control system controlled by PLC, Chinese touch screen operation, easy to operate, intuitive, contains a wealth of help functions and fault display function.

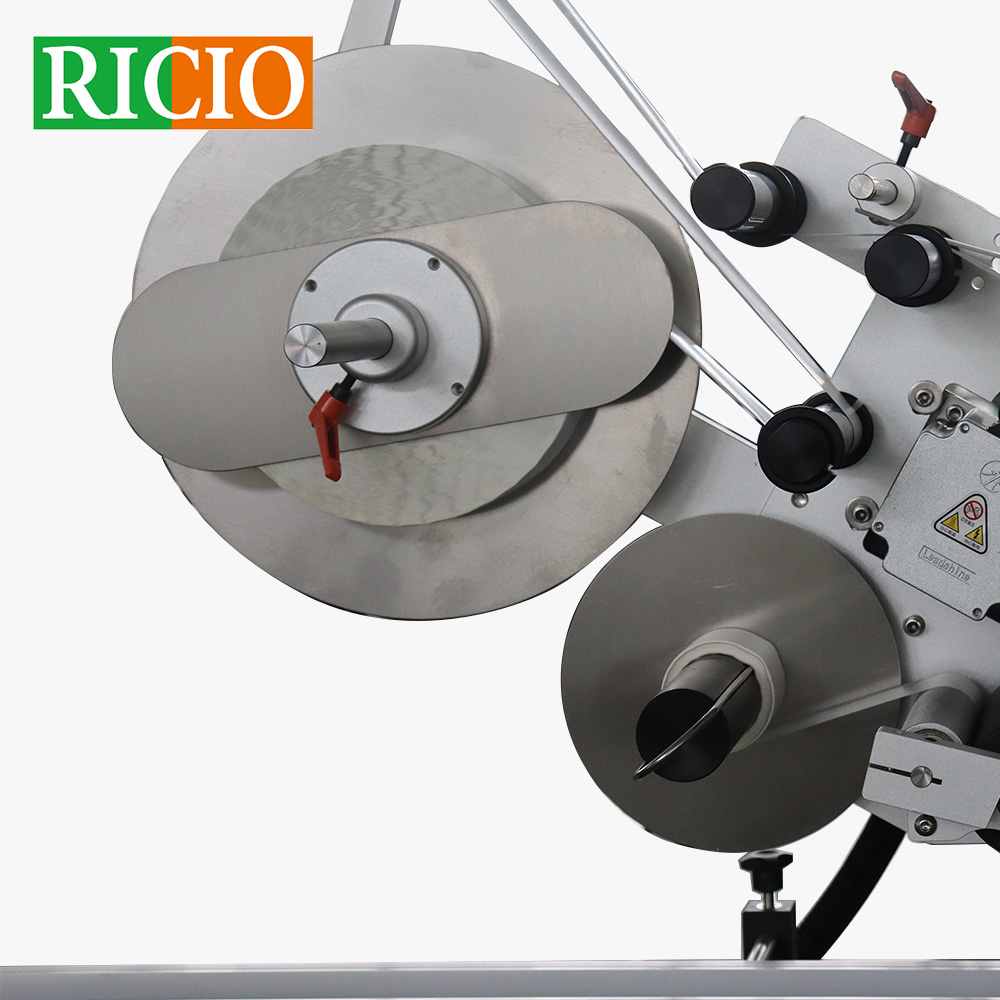

- The most critical component of the labeling machine is the label feeder, we liken the label feeder as the heart of the labeling machine, our label feeder is driven by Japanese Tamagawa Brand – Stepping Motor to ensure higher precision and better machine RUN stability.

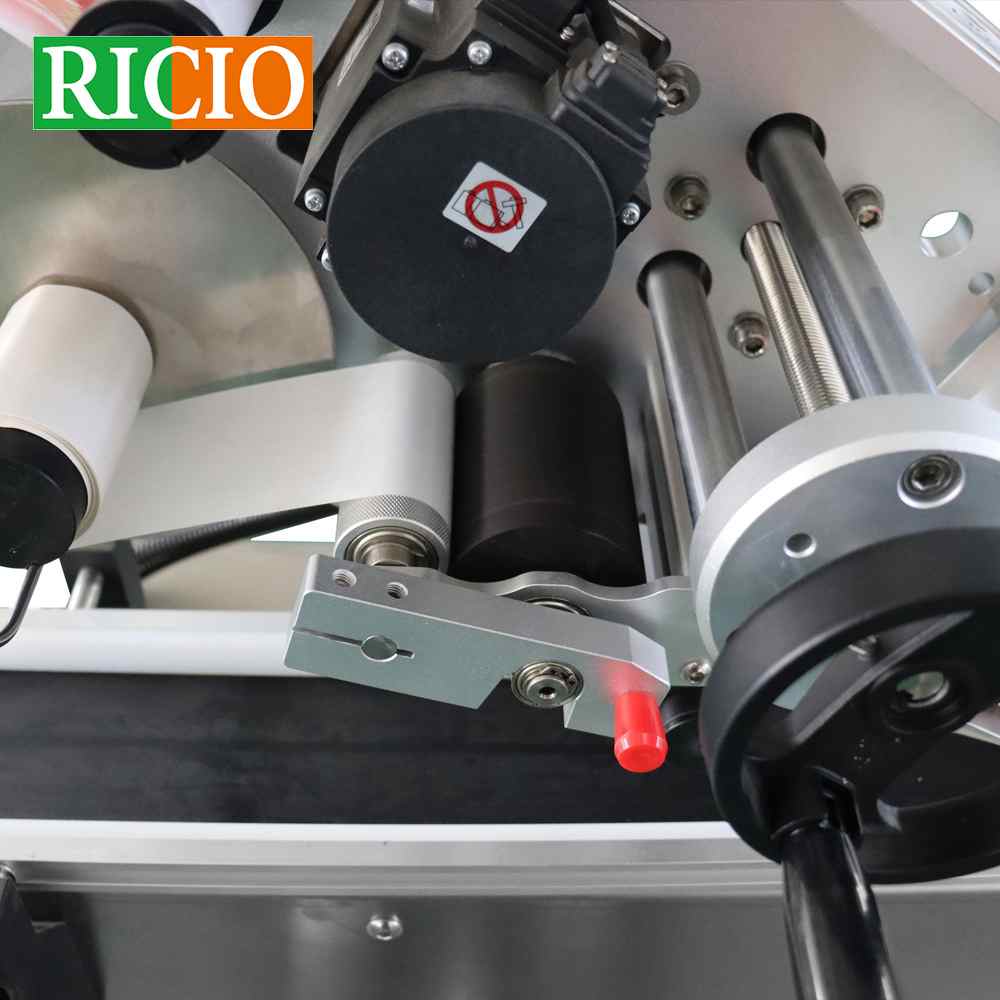

- The role of the label feeder is to pull the label, so that the label out of the label, affixed to the labeled object, and the key actuator to achieve this action is the drive roller. Our labeling machine using wear-resistant materials made of drive roller, its friction is very good, to ensure that the label movement process does not slip; another feature is very wear-resistant, to overcome the rubber or metal type is easy to be abraded by the phenomenon of label slippage and run off.
- The driving roller with the pressure roller with automatic adjustment of the parallel function, can ensure that the pressure roller and driving roller parallel, and tightly affixed together, there will be no labeling phenomenon of running diagonal.
- The machine’s working status and faults, have a reminder warning function, system operation, shutdown and faults occur, the system will be the occurrence of the event and the end (fault lifting) are recorded and stored, so that the operation and maintenance is more convenient.
- With label management and product counting function, it can realize the counting of the usage and remaining amount of labels, which is convenient for the management of labels, and the counting of products, and it can also flexibly set the counting and management function according to the requirements of customers.
Flat Box Label Applicator Performances
Flat-Surface Self-Adhesive Type Labeling Machine RXL-P can automatically stick the label to the designated position of the bottle; and at the same time complete the printing of batch number, date of production, output counting. In the absence of bottles, the control system to ensure that the label is not sent to effectively prevent the waste of labels, and according to the production characteristics of each factory labeling speed for stepless speed regulation, so as to ensure that the machine can be used individually or in line with other machines to use the labeling components to make the surface of the bottle is not too flat to get a satisfactory labeling effect.
Flat-surface Self-adhesive Type Labeling Machine RXL-P can be adapted to various specifications, colors, materials of round bottles, so the machine is widely used in medicine, food, light industry, beverage, daily chemicals and other industries.
Flat Labeling Machine Working Principle

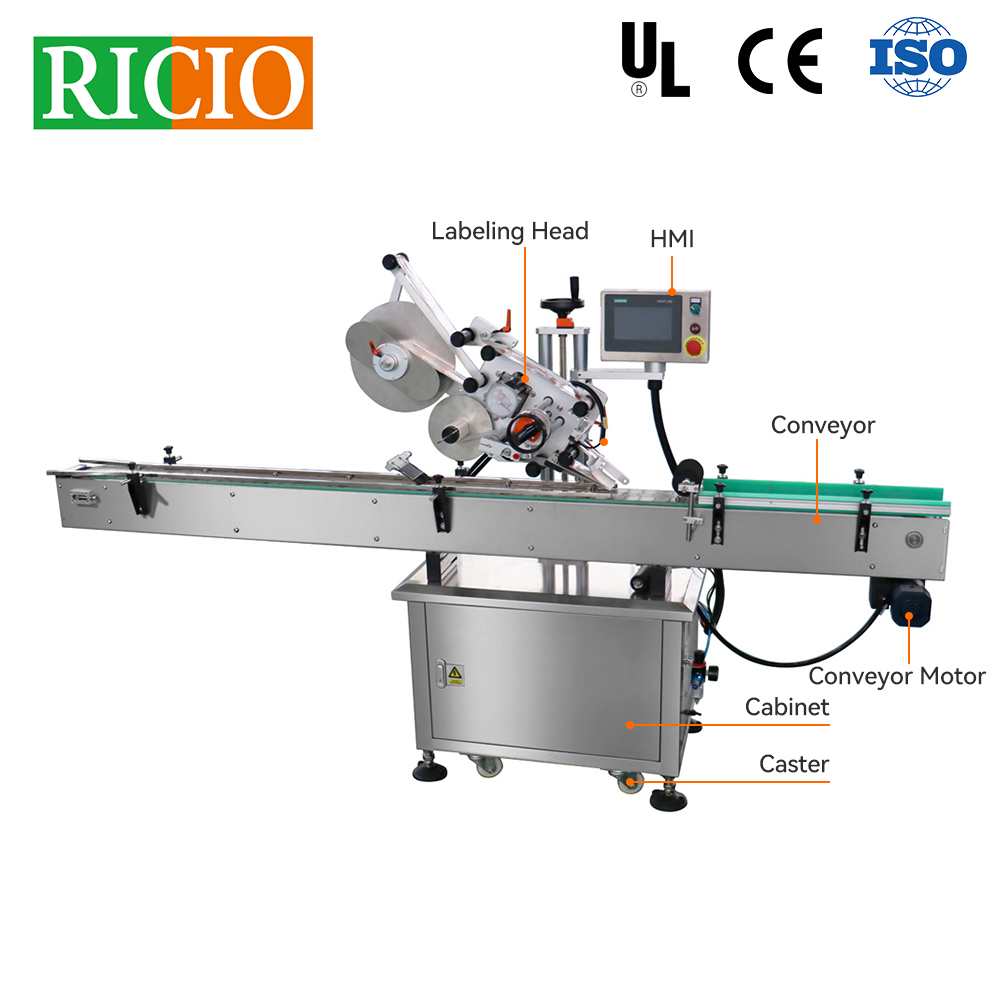

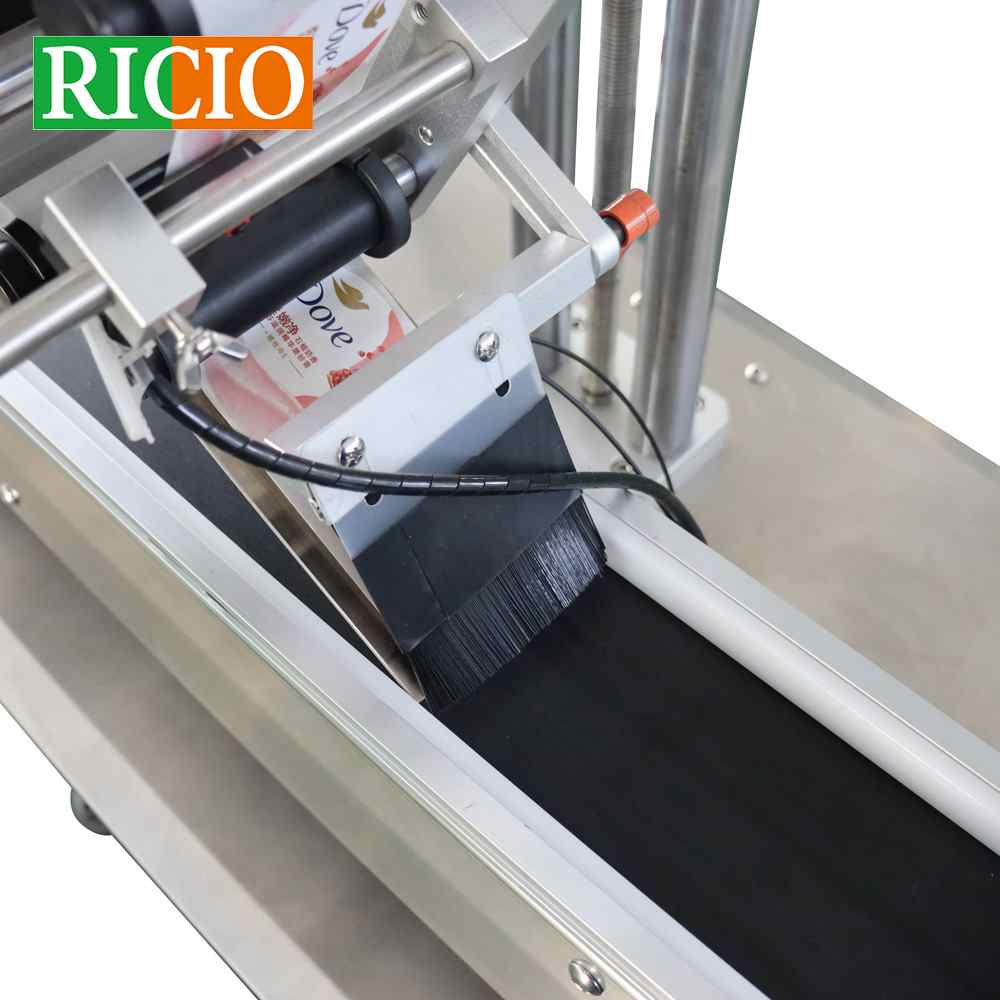

Objects to be labeled with the conveyor belt into the labeling area, photoelectric detection of it, triggering the labeling machine out of the label, the label is firmly affixed to the product box, and then through the roller labeling wheel will be smoothed label; labeled products and then out with the conveyor belt, into the next process.
Flat Surface Label Applicator Run Workflow
1 -> Manually put the labeled products (into bottle carousel or connecting line)
2 -> Products are automatically separated and conveyed
3 -> Products are detected
4 -> Products are labeled
5 -> Labeled products are collected
6 -> Products are taken away. (the whole labeling process is done)
Optional Accessories: (usu. NOT included in the standard labeling machine components configurations)
(1)Coding Printer: Thermal coding machine prints production date, expiration date, production batch number and so on. Coding and labeling synchronization, improve production efficiency.
(2)Spraying Coder: can support the market mainstream coding machine, in the labeling of the specified position for coding, and labeling machine perfect combination.
(3)Omni-Sensor: ordinary sensors can not detect transparent labels, must choose the German imports of Lloyd’s special electric eye supporting the use of.
(4) Supporting Data Reader: can read 2D QR code, Barcode and other info.to facilitate the establishment of product database for product traceability.
