Automatic 3 Head Labeling Machine Video

Automatic 3 Head Labeling Machine Tech. Parameters

Automatic 3 Head Labeling Machine Operations Workflow

-> Step 1: Manually put the labeled products (line or bottle carousel/turntable)
-> Step 2: Products are automatically separated, calibration, conveyed and aligned
-> Step 3: Product visual inspection
-> Step 4: Product labeling work
-> Step 5: To collect the labeled products (into the next process)
-> Final Step: To collect and take away the finished labeling products.

Automatic 3 Head Labeling Machine Performance Characteristics of Main Components

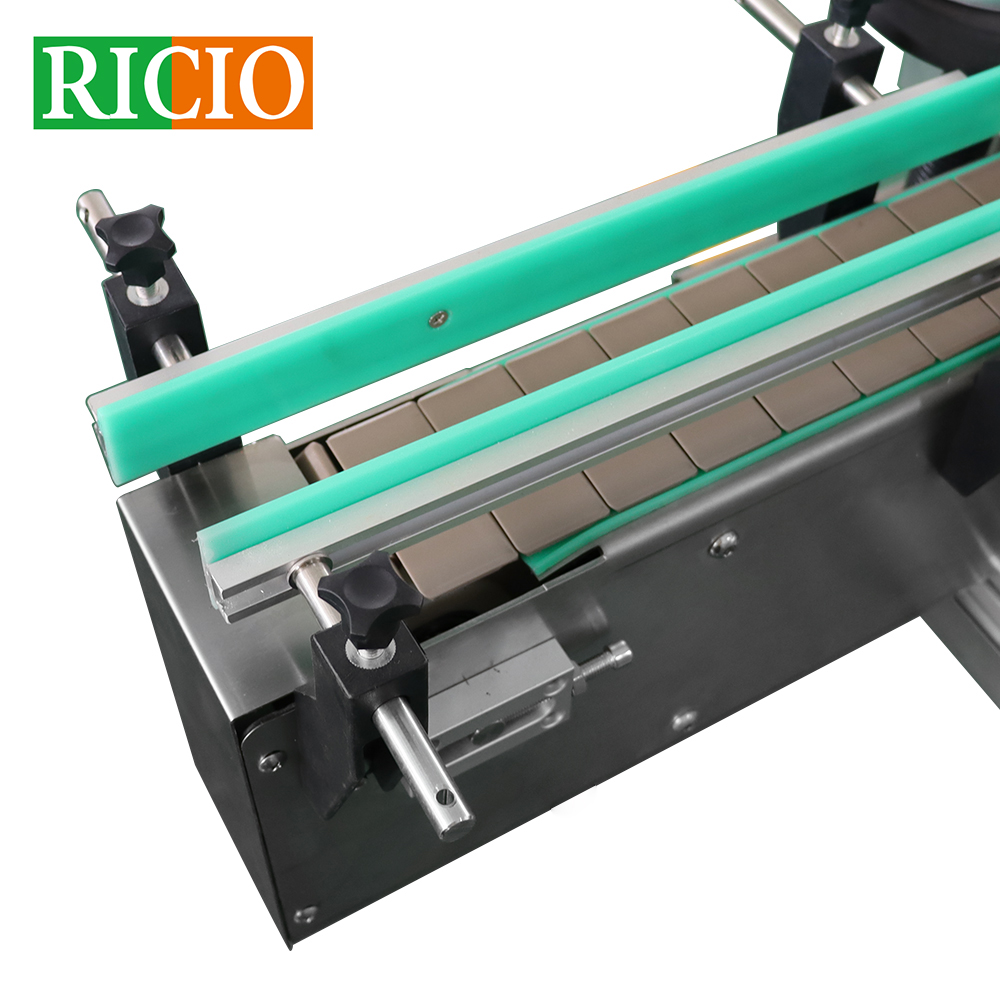

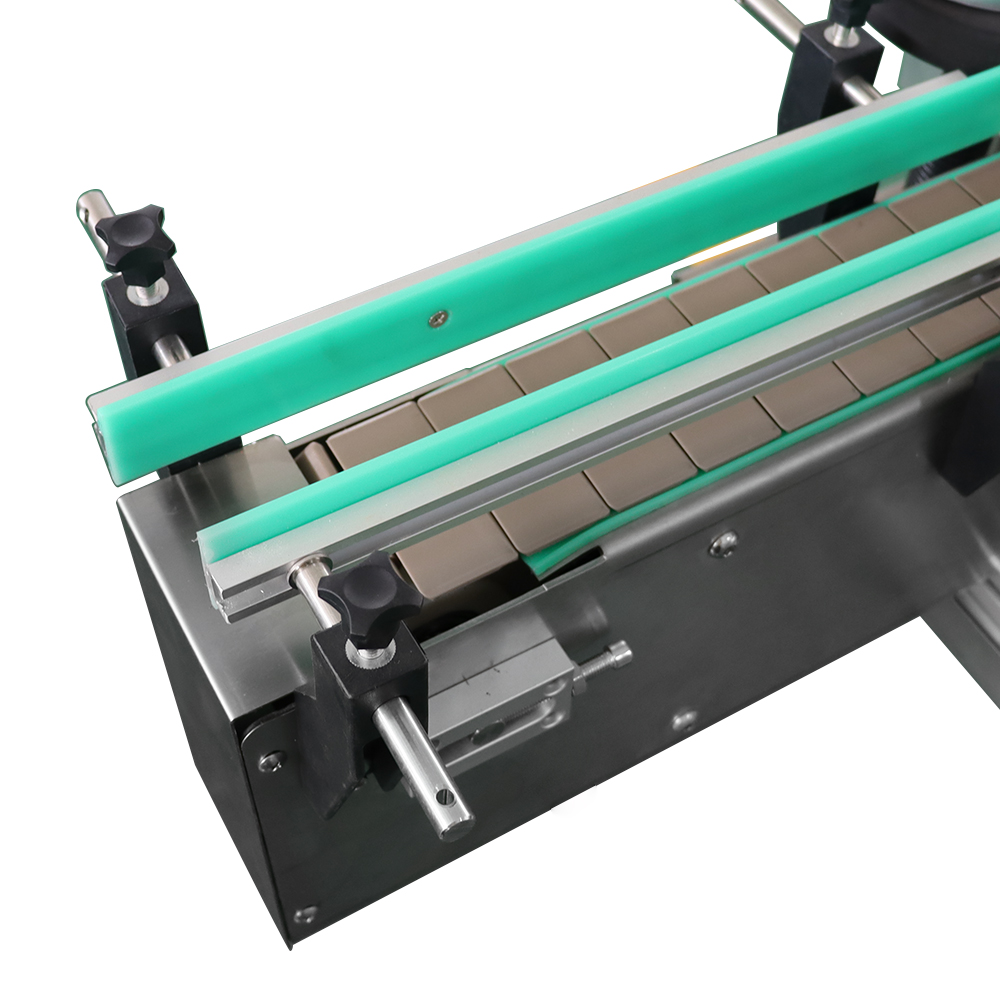

The conveyor chain plate:
Adopting the famous imported brand, it’s way easy to clean and durable for long time use.

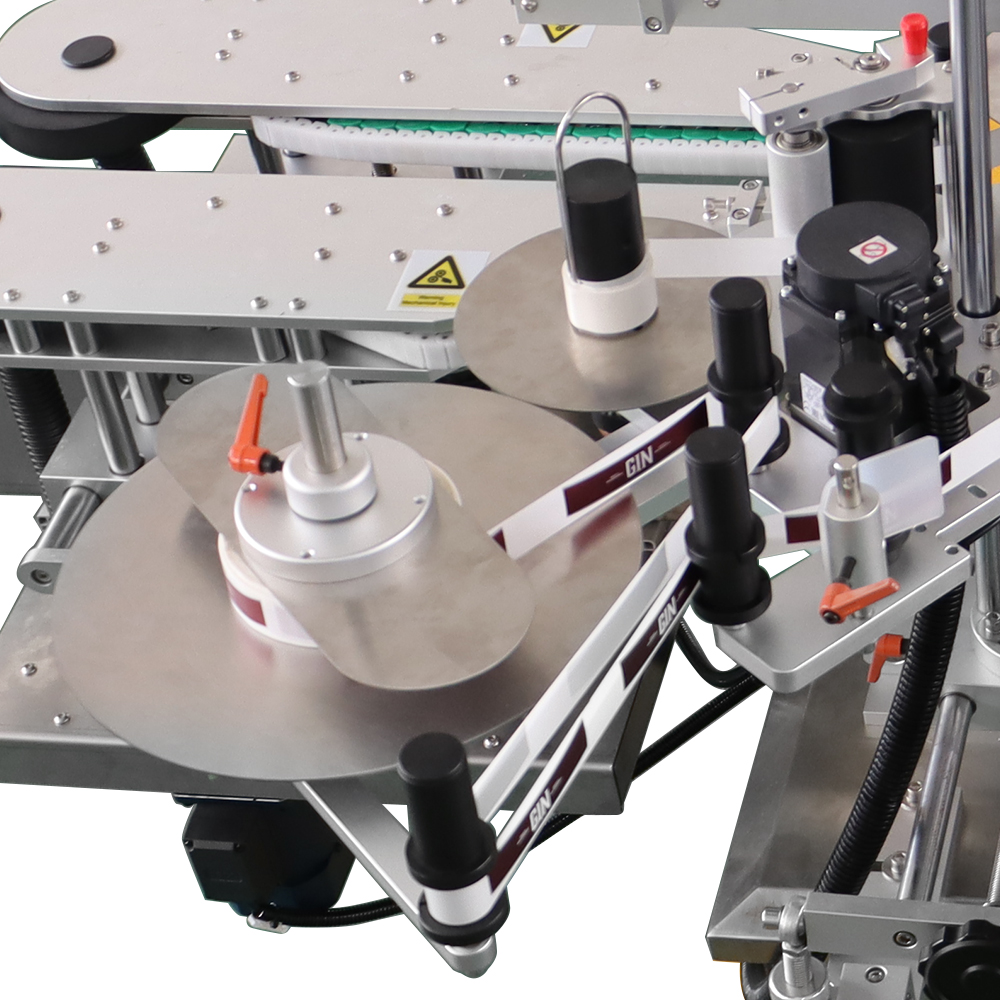

The label collection mechanism:
Motor control and conveyor belt, pull label mechanism synchronization, collect label backing paper.

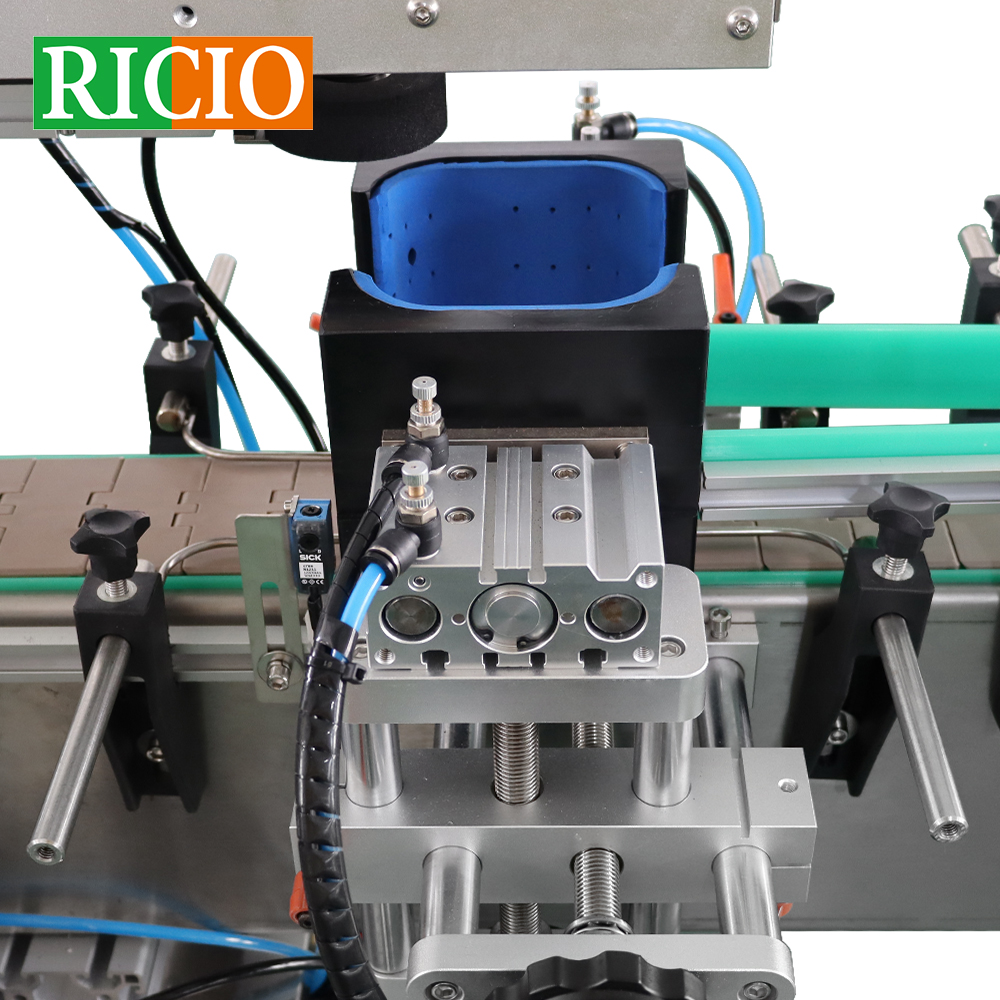

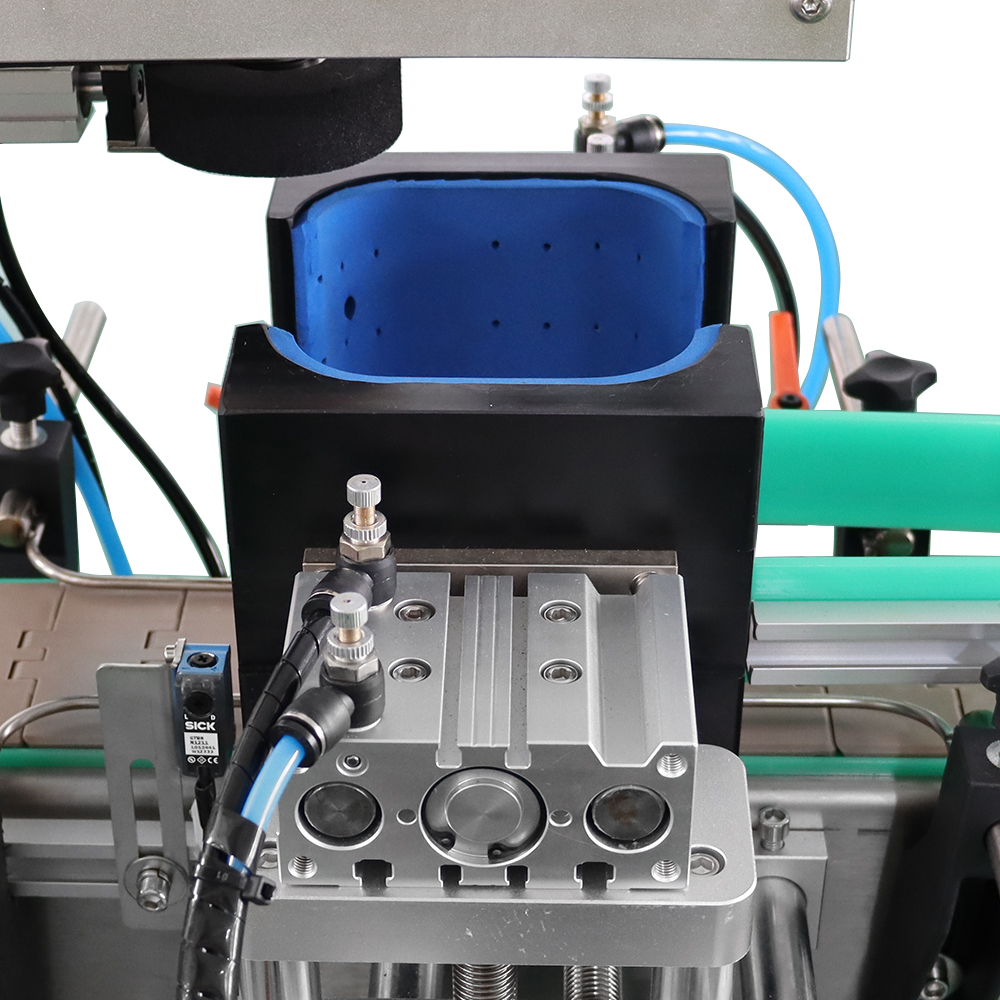

The Positioning Mechanism
can be positioned at a fixed point with high labeling accuracy.

Automatic 3 Head Labeling Machine Work Principle

Different packaging products will be put into the labeling machine conveyor belt, driven by the conveyor belt bottles into the bottle separation area, then through the calibration device, through the pressure bearing mechanism to bring bottles into the labeling area. After entering the labeling area, the optical fiber detects bottles, and transmits the photo-electric signal to the PLC, and the output signal is transmitted to the stepping motor after processing by the PLC, and the stepping motor outputs the label, and the label is attached to the labeled object by the rolling mechanism, and the labeled products are brought into the next process or containers by the labeling machine conveyor belt.

The Advantages & Features of Automatic 3 Head Labeling Machine

1. Strong compatibility: The same machine can realize the single and double/multiple-sided and adjacent right-angle surface labeling of many types of different products (such as: flat bottles,  square bottles, even irregular-shaped bottles, etc.), can be equipped with a round bottle clamp positioning mechanism, round bottle roller mechanism, 3-side labeling mechanism, etc additionally to deal with different customers’ different labeling requirements;
2. Flexible application, simple operation: Can be used either under single machine running or be connected to other assembly production line equipment; the use of double-sided rigid plastic synchronous conveyor chain plate, automatically ensure the alignment of bottles, greatly reducing the difficulty of workers or assembly line docking; config. of the automatic bottle separator, products into the conveyor mechanism before the automatic products separation & spacing, to ensure that the subsequent bottles, conveyance and long-time labeling stability;

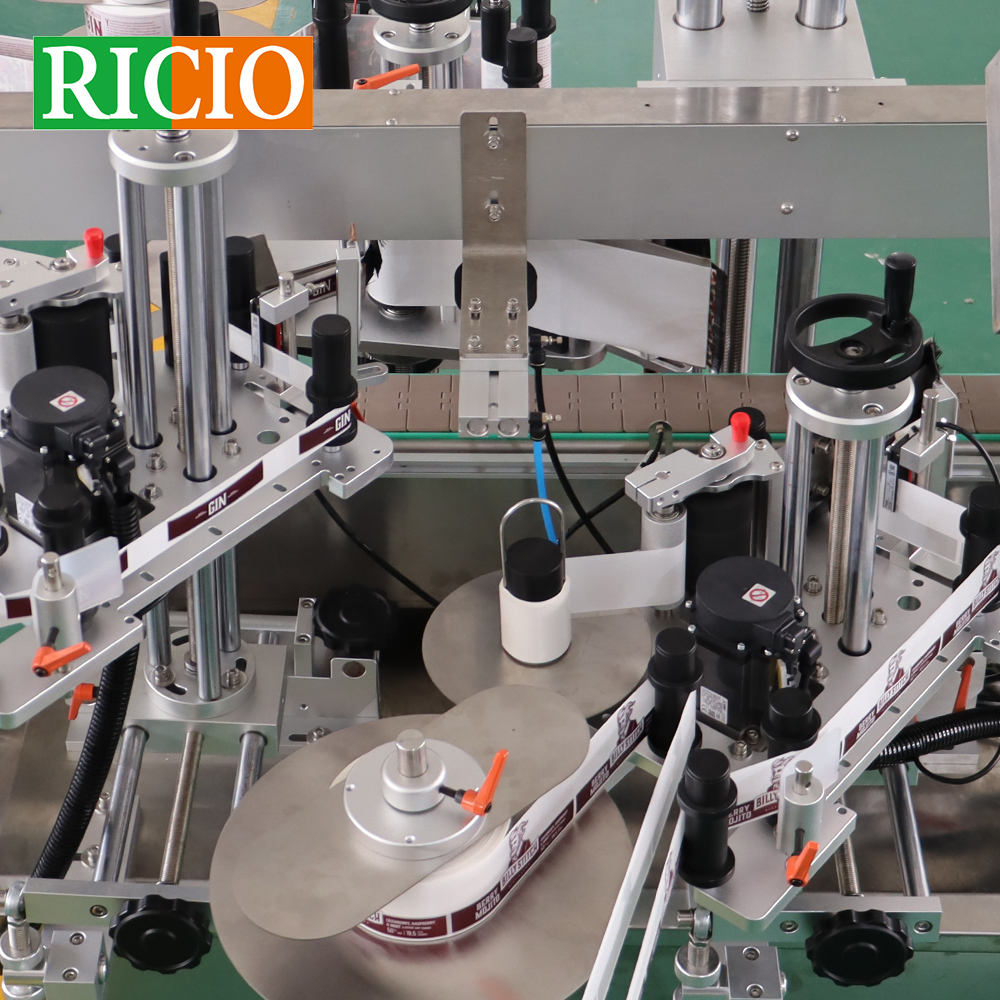

3. Equipped with three/multiple labeling machine heads: The first labeling to ensure labeling accuracy, the second extrusion labeling, effectively eliminate air bubbles and ensure that the labeling head and tail at the tight status and so on;
4. Adopting new type of elastic pressure top mechanism: To ensure smooth product delivery and effectively eliminate the bottle height error itself;
5. Sticking to the standard is accurate: High stability, the use of PLC+ subdivision stepper motor drive to send label, send the standard is accurate; cam-type brake mechanism, the tension is uniform, to ensure that the label band taut, reduce the label pull off, to ensure that the label detection is accurate; label band around the calibration mechanism to prevent labels from shifting the left and the right, to ensure that the accuracy of labeling.
6. With powerful, color touch screen control panel: Both Chinese & English languages free-shift optional human interface (HMI), convenient-to-operate and intuitive, powerful data memory function, can store 50 groups of labeling parameters, with production counting function, power-saving function, production number setting prompt function, parameters setting protection function, convenient production management, different products labeling switch one-button to achieve so easy RUN, no need to repeatedly debugging, simple and fast; and has a perfect fault prompts/debugging capability.
7. High stability of machine performance: Executing high measuring standards, measuring sensors using imported first-rate brands, high detection sensitivity, stable performance and durability; stable and durable machine base and various components, are adopted standardized modular design with full interchangeability, even under 24-hour long time operation/RUN circumstance, to ensure safety and stability outright.
8. Safety and hygiene of machine operations & maintenance: The machine chassis is made of high quality materials with stainless steel SUS304 and T6 aluminum alloy, never gets rusty, and in line with the GMP excellent manufacturing standards;

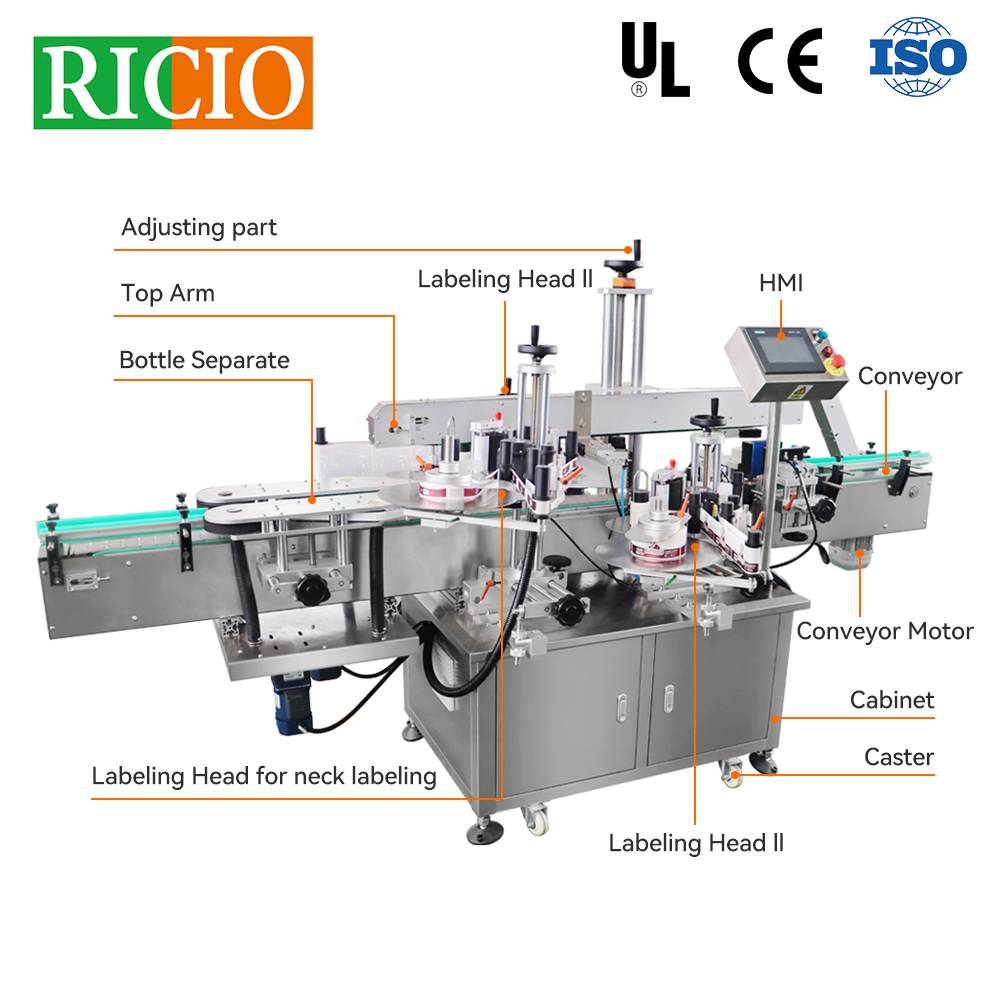

Automatic 3 Head Labeling Machine Components Config. List

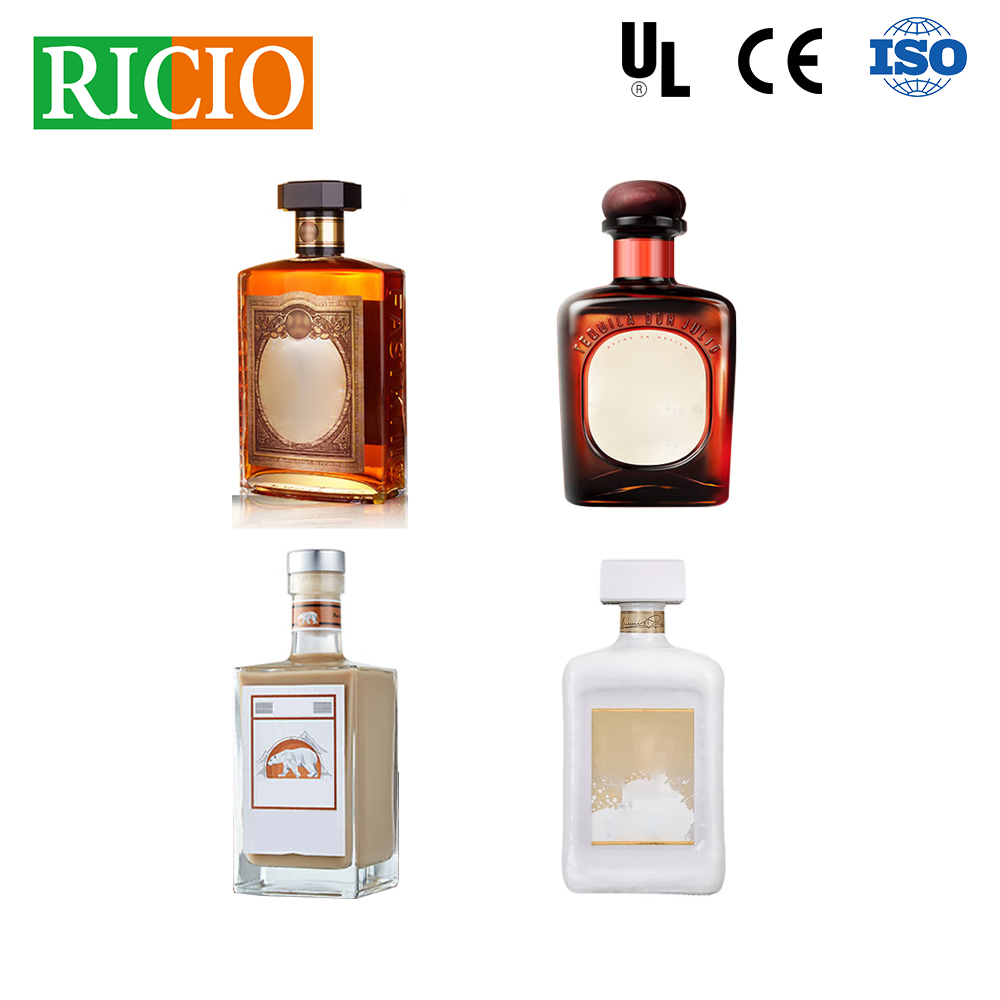

Automatic 3 Head Labeling Machine Application

Automatic 3 Head Labeling Machine Optional Config. & Auxiliary Equipment

1. Coding Printer: Thermal coding machine prints production date, expiration date, production batch number and so on. Coding and labeling synchronization, improve production efficiency so much.
2. Spraying Printer: Can support the market mainstream coding machine, in the labeling of the specified position for coding, and labeling machine perfect combination.
3. Omni-Sensor: Those ordinary sensors cannot detect transparent labels, so it’s wise to choose the German Imported Brand – LEUZE special electric eye that supports the use of high-precision photo-electric sensors.
4. Supporting Data Reader: Can read 2D QR code, barcode and other information to facilitate the establishment of product database for product traceability.
